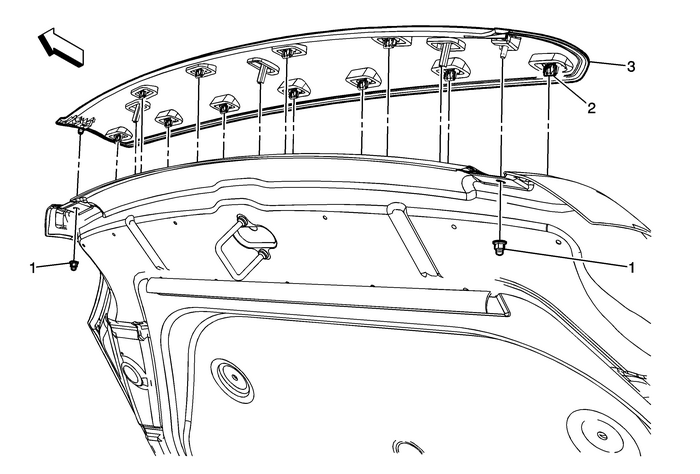

Hood Front Molding Replacement (Terrain) Hood Assembly

Hood Front Molding Replacement

Callout

Component Name

Preliminary Procedure

Open and suitably support the hood assembly.

1

Hood Front Molding Nut (Qty-:2)

Caution:Refer toFastener Caution.

Tighten

4.7-Y(40-lb-in)

2

Hood Front Molding Retainer Clip (Qty-:11)

ProcedureEnsure all of the foam gaskets are in place at each retainerclip prior to installing the hood molding to the hoodassembly.Use a clean dry cotton towel and the palm of the hand tosecure the retainer clips into the hood assembly.Begin in the center of the molding working outward to bothends of the hood front molding.

3

Hood Front Molding
