Fuel Feed Pipe Replacement

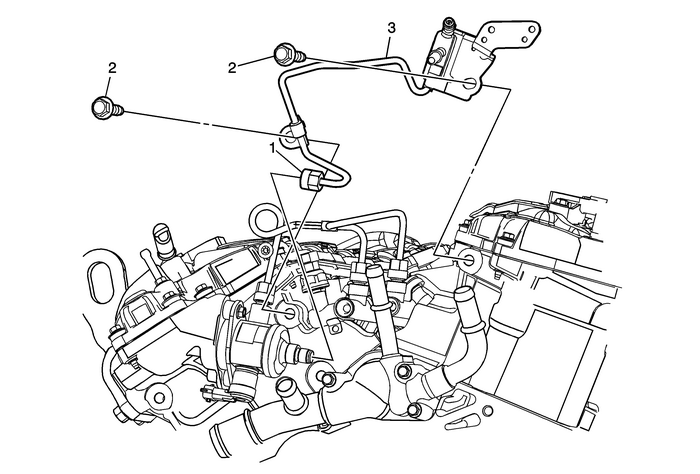

Callout

Component Name

Preliminary ProceduresRelieve the fuel system pressure. Refer toFuel Pressure Relief.Remove the intake manifold cover. Refer toIntake Manifold Cover Replacement.Remove the fuel pipe shield. Refer toFuel Pipe Shield Replacement.
1	Fitting Caution:Refer toFastener Caution. Tighten First Pass 15-Y (11-lb-ft)Second Pass 30-Y (22-lb-ft)
2	Bolt (Qty: 2) Tighten 50-Y(28-lb-ft)
3	Fuel Feed Pipe ProcedureDISCARD the pipe when removed, and install a NEW pipe.Ensure that the high pressure fuel pipe, and fuel pump fittings are clean and dryprior to assembly.Pressure up the fuel system and check for leaks.

Fuel Feed Intermediate Pipe Replacement Engine Control

Fuel Feed Intermediate Pipe ReplacementCalloutComponent NamePreliminary ProceduresRelieve the system pressure. Refer toFuel Pressure Relief.Remove the fuel pump cover. Refer toFuel Pump Cover Replacem ...

Fuel Feed Pipe Replacement (With Direct Injection) Engine Control

Fuel Feed Pipe ReplacementCalloutComponent NamePreliminary ProceduresRemove the intake manifold cover. Refer toIntake Manifold Cover Replacement.Disconnect the fuel lines. Refer toMetal Collar Quick C ...
