Fuel Feed Pipe Replacement (With Direct Injection) Engine Control

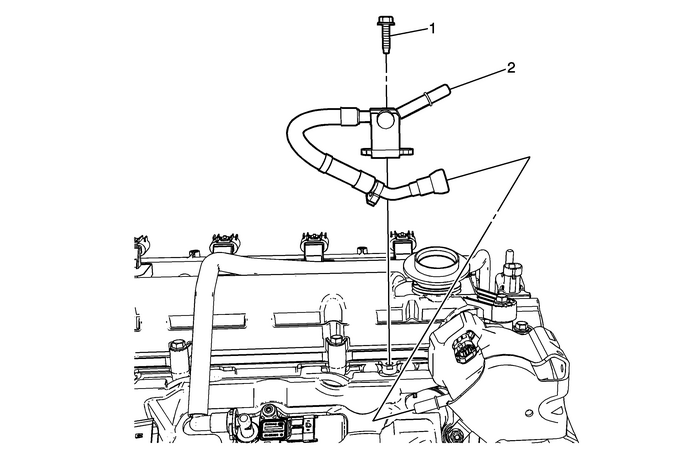

Fuel Feed Pipe Replacement

Callout

Component Name

Preliminary ProceduresRemove the intake manifold cover. Refer toIntake Manifold Cover Replacement.Disconnect the fuel lines. Refer toMetal Collar Quick Connect Fitting Service.

1

Fuel Feed Pipe Fastener

Caution:Refer toFastener Caution.

Tighten

10-Y(89-lb-in)

2

Fuel Feed Pipe

Fuel Feed Pipe Replacement Engine Control
Fuel Feed Pipe ReplacementCalloutComponent NamePreliminary ProceduresRelieve the fuel system pressure. Refer toFuel Pressure Relief.Remove the intake manifold cover. Refer toIntake Manifold Cover Repl ...

Fuel Injection Fuel Rail Assembly Replacement Engine Control
Fuel Injection Fuel Rail Assembly ReplacementCalloutComponent NamePreliminary ProceduresRelieve the fuel system pressure. Refer toFuel Pressure Relief.Remove the intake manifold. Refer toIntake Manifo ...
