Chevrolet Equinox Service Manual: Fuel Rail and Injectors Removal Fuel System Fuel Rail

Chevrolet Equinox Service Manual / Powertrain / Engine / Fuel Rail and Injectors Removal Fuel System Fuel Rail

Special Tools

EN-49248Fuel Rail Assembly Remover

For equivalent regional tools, refer toSpecial Tools

Fuel Rail and Injectors Removal Fuel System Fuel Rail

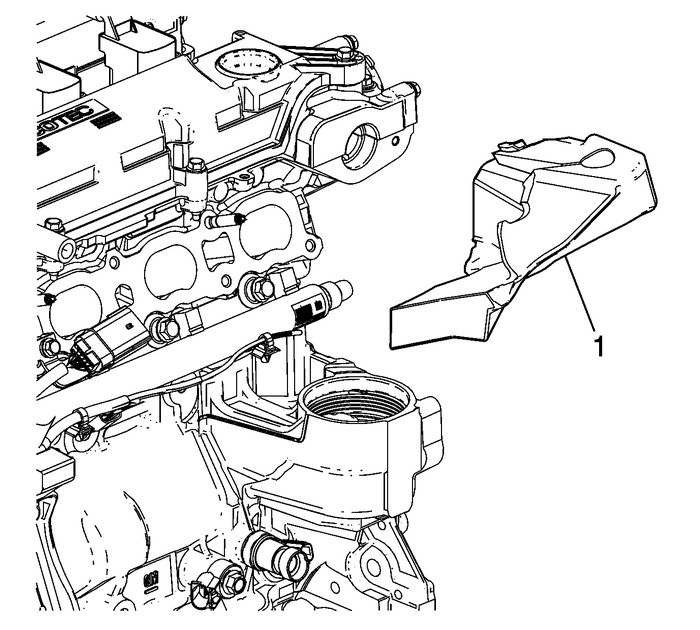

Remove the fuel injection fuel rail noiseshield-(1).

Fuel Rail and Injectors Removal Fuel System Fuel Rail

Disconnect the electrical harness from the fuel rail harnessconnection.Disconnect all 4-fuel injector electricalconnections.Remove the fuel rail assembly retaining bolts.

Note:Use care to avoid contact with the fuel rail harness duringspecial tool installation and fuel rail removal.

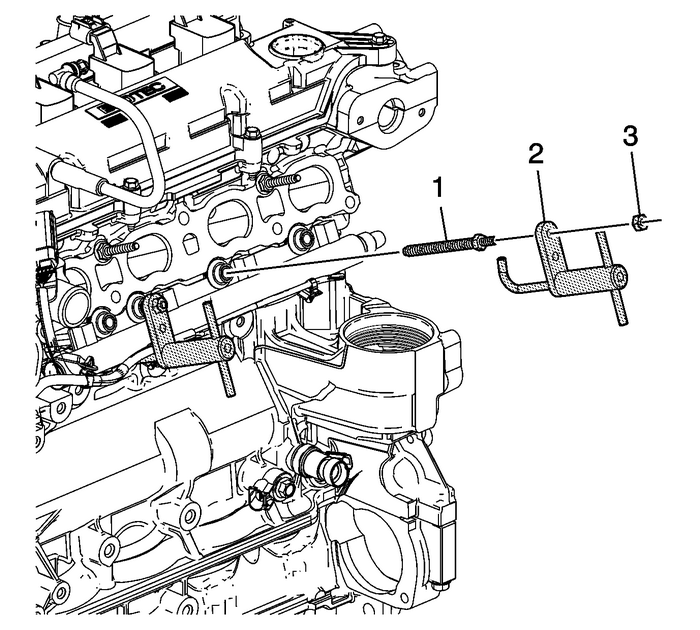

InstallEN-49248studs-(1) into the 2 center fuel rail assemblyretaining bolt locations. Tighten the studs to22-Y(16-lb-ft).InstallEN-49248remover-(2) onto each stud, and engage the hooks tothe fuel rail. Install the nuts-(3) retaining theremover onto the studs and tighten until snug.

Fuel Rail and Injectors Removal Fuel System Fuel Rail

Note:EN-49248 will assist in the proper removal of the fuel railassembly. Ensure that the following conditions are met:

Turn the handles simultaneously in order to pull the fuelrail straight out along the fuel injector axis.DO NOT twist when pulling out on the fuel rail and injectorassembly.UsingEN-49248remover, remove the fuel rail assembly-(1).
