Front Side Door Window Regulator Motor Replacement Doors

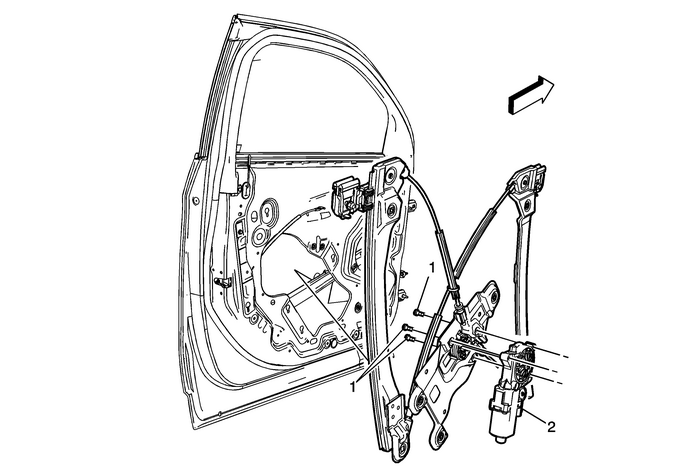

Front Side Door Window Regulator Motor Replacement

Callout

Component Name

Preliminary Procedure

Remove the front side door window regulator. Refer toFront Side Door Window Regulator Replacement

1

Front Side Door Window Regulator Motor Bolt(Qty:-3)

Warning:Refer toGlass and Sheet Metal Handling Warning.

Caution:Refer toFastener Caution.

Tighten

8-Y(71-lb-in)

2

Front Side Door Window Regulator Motor

Procedure

Inspect the operation of the window before installing thedoor trim panel.
