Chevrolet Equinox Service Manual: Front Side Door Window Regulator Replacement Doors

Chevrolet Equinox Service Manual / Body / Doors and Enclosures / Front Side Door Window Regulator Replacement Doors

Front Side Door Window Regulator Replacement Doors

Front Side Door Window Regulator Replacement

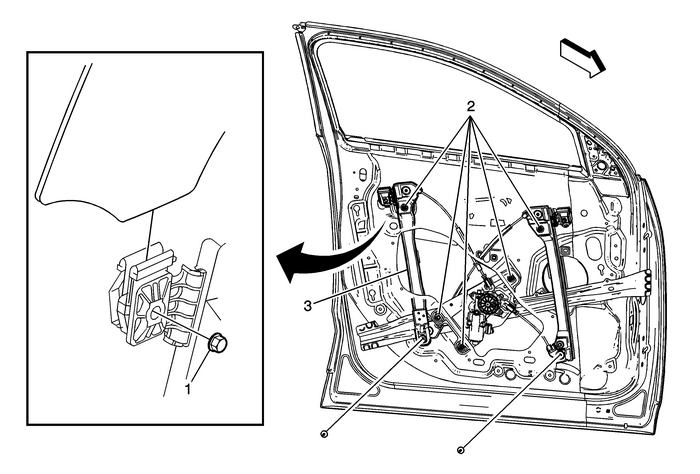

Callout

Component Name

Preliminary ProceduresPlace the window in the fully down position.Remove front door trim panel. Refer toFront Side Door Trim Panel Replacement.Remove the front side door inner sealing strip. Refer toFront Side Door Window Inner Sealing Strip Replacement.

1

Front Side Door Window Regulator Guide Nuts to Window(Qty:-2)

Warning:Refer toGlass and Sheet Metal Handling Warning.

Caution:Refer toFastener Caution.

ProcedureRemove the front side door water deflector.Remove the nuts on the window regulator guide.Raise the window to the fully up position, tape inplace.Disconnect the electrical connector from the motor.Position window to access the front side door windowregulator guide nuts.Tighten

11-Y(97-lb-in)

2

Front Side Door Window Regulator Bolt(Qty:-7)

Tighten

11-Y(97-lb-in)

3

Front Side Door Window Regulator

ProcedureWhen installing a new window regulator, transfer the twowindow regulator guides nuts.After the window regulator has been installed and connectedremove the tape from the window and lower the window to meet theregulator guides nuts.Inspect the door window for proper operation beforeinstalling the door trim panel.
