Fluid Trough Installation Automatic Transmission Unit

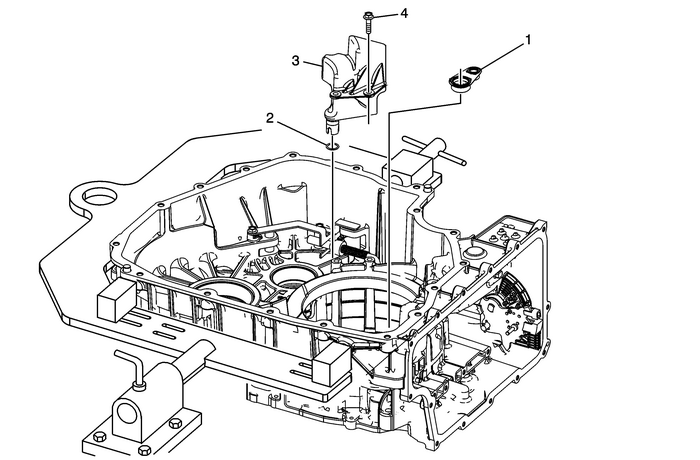

Fluid Trough Installation

Callout

Component Name

1

A/Trans Fluid Pump Outlet Seal Assembly

2

A/Trans Fluid Trough (O-ring) Seal

3

A/Trans Fluid Trough

4

A/Trans Fluid TroughBolt-M6-x-25 (Qty: 1)

Caution:Refer toFastener Caution.

Tighten

12-Y(106-lb-in).

Fluid Pump Selective Measurement Automatic Transmission Unit Transmission Oil Pump
Fluid Pump Selective MeasurementCalloutComponent Name1A/Trans Fluid Pump BodyNote:Measure the distance from the bottom of the gauge bar to the bottom of the pump rotorcavity. Refer toFluid Pump Select ...

Fluid Trough Removal Automatic Transmission Unit
Fluid Trough RemovalCalloutComponent Name1A/Trans Fluid Trough Bolt-M6-x-25 (Qty: 1)2A/Trans Fluid Trough3A/Trans Fluid Trough-(O-Ring) Seal4A/Trans Fluid Pump Outlet Seal AssemblyNote:The seal assemb ...
