Front Side Door Warning Lamp Replacement Doors

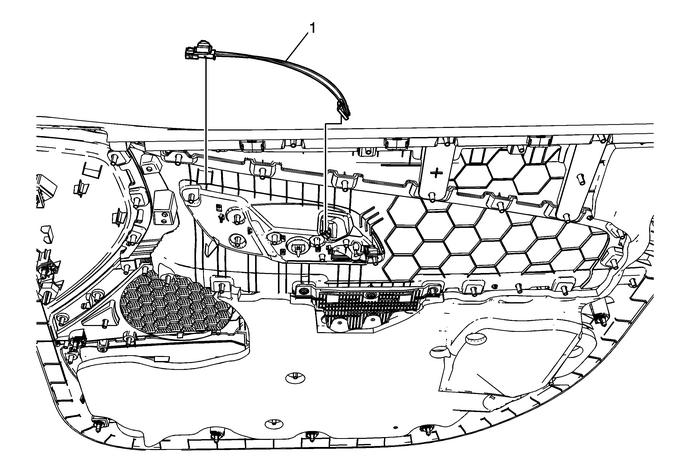

Front Side Door Warning Lamp Replacement

Callout

Component Name

Preliminary Procedure

Remove the front side door trim panel. Refer toFront Side Door Trim Panel Replacement

1

Front Side Door Warning Lamp

Procedure

Disconnect the electrical connector.
