Front Side Door Lower Molding Replacement Doors

Front Side Door Lower Molding Replacement

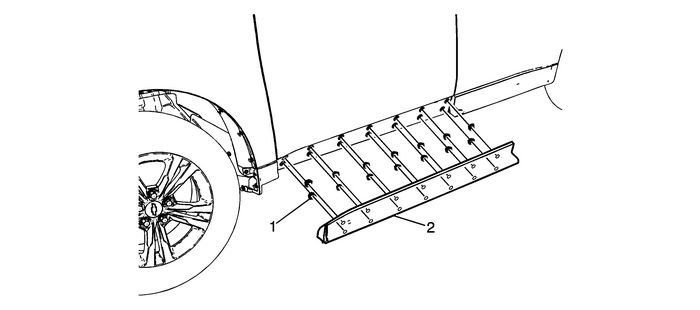

Callout

Component Name

Preliminary ProceduresOpen the front door in order to access the lower moldingretainers first.Using a trim-type tool, release the lower retainers followedby the upper retainers.

1

Front Side Door Lower Molding Retainer(Qty:-14)

2

Front Side Door Lower Molding
