Chevrolet Equinox Service Manual: Control Valve Body Spacer Plate Assembly - Case Side Automatic Transmission Unit

Chevrolet Equinox Service Manual / Powertrain / Transmission/Transaxle / Control Valve Body Spacer Plate Assembly - Case Side Automatic Transmission Unit

Control Valve Body Spacer PlateAssembly-–-Case Side

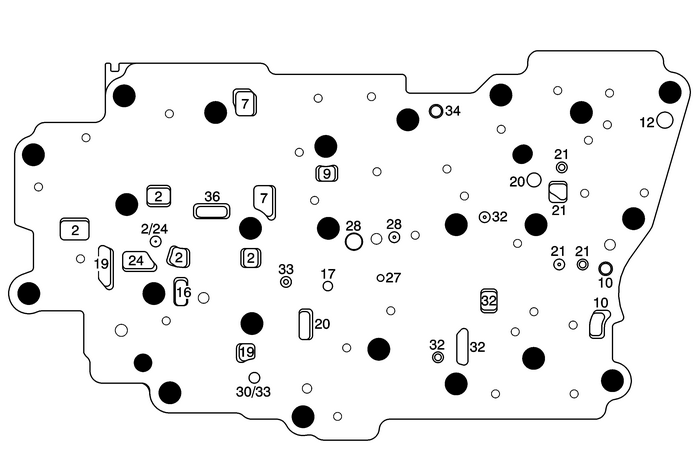

Control Valve Body Spacer Plate Assembly - Case Side Automatic Transmission Unit

(2)Line
(7)Cooler Feed
(9)Regulated Apply
(10)Exhaust Backfill
(12)PCS Line
(16)R1/456 Clutch Feedback
(17)R1
(19)Reverse
(20)35 Reverse Clutch Feed
(21)35 Reverse Clutch
(24)Auxiliary Line (BAS+Only)
(27)1234 Clutch
(28)1234 Clutch Feedback
(30)Latch
(32)26 Clutch
(33)456 Clutch
(34)PCS TCC
(36)Exhaust
