Control Valve Channel Plate Cleaning and Inspection Automatic Transmission Unit

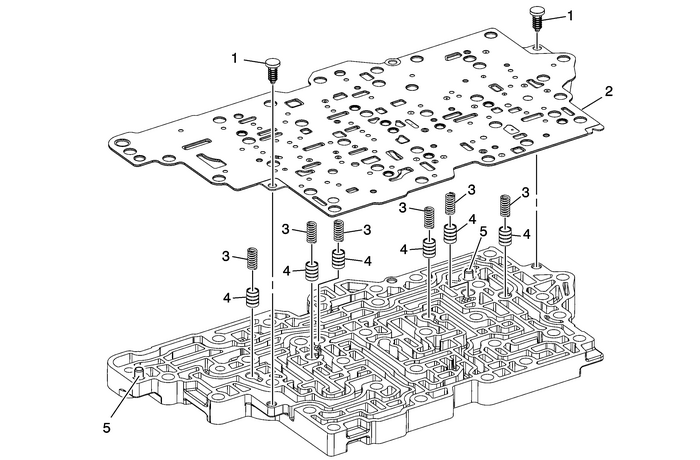

Control Valve Channel Plate Cleaning and Inspection

Callout

Component Name

Caution:After cleaning the transmission components, allow to air dry.Do not use cloth or paper towels in order to dry any transmissioncomponents. Lint from the towels can cause componentfailure.

Caution:Do not reuse cleaning solvents. Previously used solvents maydeposit sediment which may damage the component.

1

Control Valve Body Spacer Plate Retainer-(Qty: 2)

2

Control Valve Upper Body Spacer Plate Assembly

3

Actuator Feed Accumulator Spring-(Qty: 3)

4

Actuator Feed Accumulator Piston-(Qty: 3)

5

Control Valve Body Locating Pin-(Qty: 2)

Note:Inspect locating pins for proper installed height of 4.25-mm (0.17-in).

Control Valve Body Spacer Plate Assembly - Case Side Automatic Transmission Unit
Control Valve Body Spacer PlateAssembly-–-Case Side(2)Line(7)Cooler Feed(9)Regulated Apply(10)Exhaust Backfill(12)PCS Line(16)R1/456 Clutch Feedback(17)R1(19)Reverse(20)35 Reverse Clutch Feed(21)35 ...

Control Valve Channel Plate - Upper Body Spacer Plate Side Automatic Transmission Unit
Control Valve Channel Plate– Upper Body Spacer Plate Side(2)Line(4)Converter Feed(7)Cooler Feed(9)Regulated Apply(10)Compensator Feed(11)Actuator Feed Limit(13)PCS Line(14)PCS R1/456 Clutch(15)Solen ...
