Front Side Door Sill Trim Plate Replacement Trim Panels/Welts

Front Side Door Sill Trim Plate Replacement

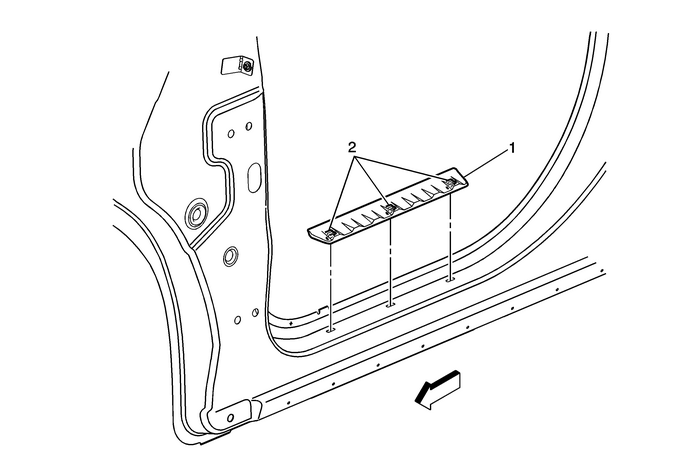

Callout

Component Name

1

Front Side Door Sill Trim Plate Assembly

2

Front Side Door Sill Trim Plate Assembly Clip(Qty:-3)

Procedure

Use a flat-bladed plastic trim tool in order to release theclips and remove the sill plate.
