Front Side Door Trim Panel Replacement Trim Panels/Welts

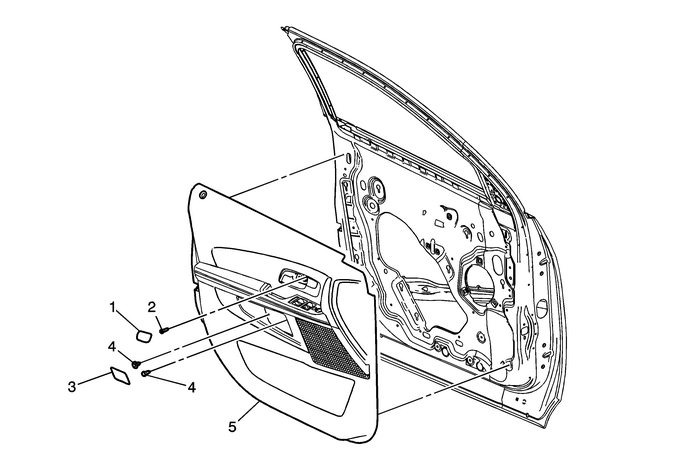

Front Side Door Trim Panel Replacement

Callout

Component Name

1

Front Side Door Inside Handle Bolt Finish Cap

Tip:Pull handle back to remove cap. Use suitable tool tounsnap.

2

Front Side Door Inside Handle Fastener

Caution:Refer toFastener Caution.

Tighten

2.5-Y-(22-lb-in)

3

Front Side Door Pull Handle Cover

4

Front Side Door Pull Handle Fastener(Qty:-2)

Tighten

2.5-Y-(22-lb-in)

5

Front Side Door Trim Panel Assembly

ProcedureUse a door trim tool, or equivalent, to aid in the removal ofthe door trim panel.Disconnect the inside handle release cable from the trimpanel.Disconnect electrical connectors.
Front Side Door Sill Trim Plate Replacement Trim Panels/Welts
Front Side Door Sill Trim Plate ReplacementCalloutComponent Name1Front Side Door Sill Trim Plate Assembly2Front Side Door Sill Trim Plate Assembly Clip(Qty:-3)ProcedureUse a flat-bladed plastic trim t ...

Headlining Trim Panel Replacement Trim Panels/Welts
Headlining Trim Panel ReplacementCalloutComponent NameWarning:Do not attempt to repair or alter the head impactenergy-absorbing material glued to the headliner or to the garnishtrims. If the material ...
