Front Seat Heater Control Module Replacement Seats Front

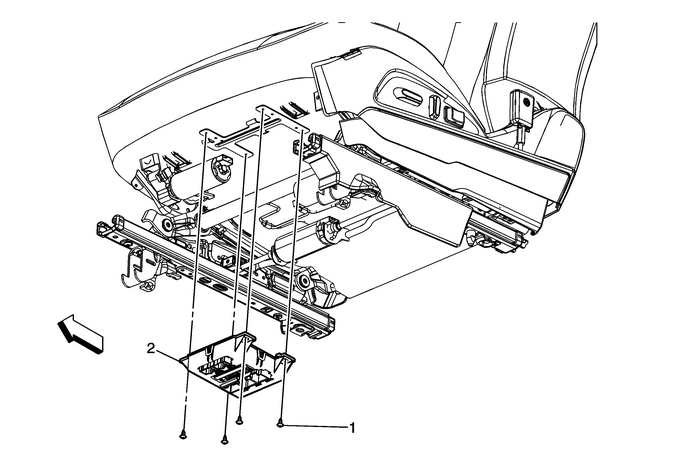

Front Seat Heater Control Module Replacement

Callout

Component Name

1

Front Seat Heater Control Module Fastener(Qty:-4)

Caution:Refer toFastener Caution.

Tighten

4-Y(35-lb-in)

2

Front Seat Heater Control Module

ProcedureDisconnect the electrical connectors.Remove the module from the heater control modulebracket.Refer toControl Module Referencesfor replacement and setupinformation.
