Front Seat Cushion Cover and Pad Replacement Seats Front

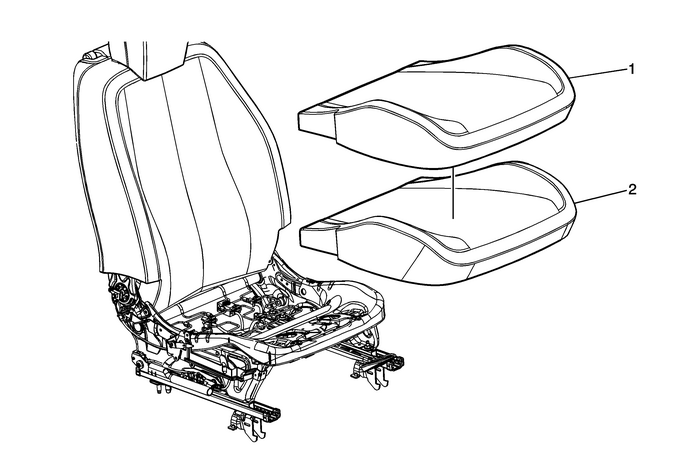

Front Seat Cushion Cover and Pad Replacement

Callout

Component Name

Warning:Refer toSIR Warning.

Preliminary ProcedureRemove the front seat. Refer toDriver or Passenger Seat Removal and Installation.Remove the front seat outer adjuster finish cover. Refer toDriver or Passenger Seat Outer Adjuster Finish Cover Replacement.Remove the front seat inner recliner finish cover. Refer toDriver or Passenger Seat Inner Recliner Finish Cover Replacement.Whenever the inflatable restraint passenger presence system or any component of thepassenger presence system is removed. Refer toPassenger Presence System Programming and Setup.

1

Front Seat Cushion Cover

ProcedureRemove the rear retainers on the seat cushion cover from the seat frame.Disengage the J-channel retainer from the seat frame.Disconnect the electrical connector, if equipped.Remove the seat cushion cover and pad from the seat cushion frame as an assembly.

2

Front Seat Cushion Pad

ProcedureRemove the hook and loop fasteners from the under side of the seat cushion.Pull the cushion cover off of the pad.When replacing the front passenger seat cushion pad, you must also replace the inflatablerestraint passenger presence system. Refer toAirbag Front Passenger Presence Sensor Replacement
