Front Seat Back Recliner Handle Replacement Seats Front

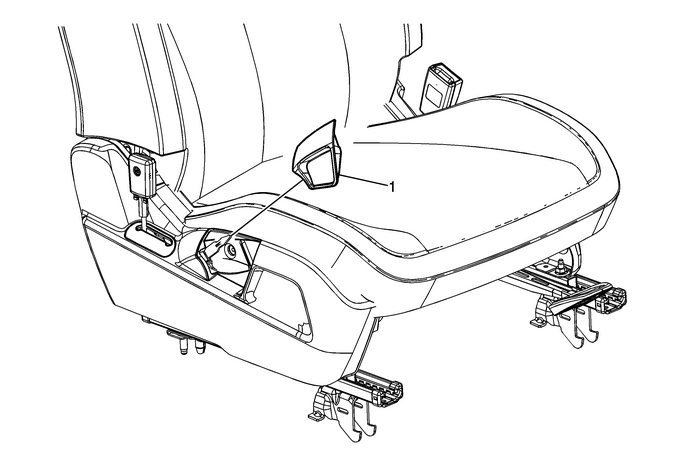

Front Seat Back Recliner Handle Replacement

Callout

Component Name

1

Driver or Passenger Seat Recliner Handle

Procedure

Pull upward on the recliner handle in a north and southdirection, with out reclining the seatback.

Tip:Use a flat-bladed tool to release the recliner handle fromthe recliner bracket.
