Front Floor Console Trim Plate Replacement Consoles Center Console

Front Floor Console Trim Plate Replacement

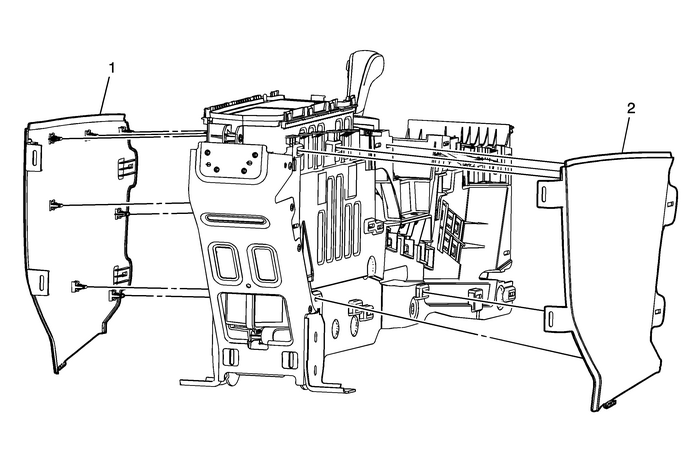

Callout

Component Name

Preliminary ProcedureRemove the front seat assemblies. Refer toDriver or Passenger Seat Removal and Installation.Remove the front floor console left and right side finishcovers. Refer toFront Floor Lower Console Side Finish Cover Replacement - Left SideandFront Floor Lower Console Side Finish Cover Replacement - Right Side.Remove the front floor console rear cover. Refer toFront Floor Console Rear Cover Replacement.

1

Front Floor Console Trim Plate - Left

Procedure

Grasp the front floor console trim plate and pull outwardreleasing the retainer clips securing the front floor console trimplate to the console assembly.

2

Front Floor Console Trim Plate - Right

Procedure

Grasp the front floor console trim plate and pull outwardreleasing the retainer clips securing the front floor console trimplate to the console assembly.
