Front Floor Front Console Accessory Trim Bezel Replacement Consoles Center Console

Front Floor Front Console Accessory Trim Bezel Replacement

Callout

Component Name

1

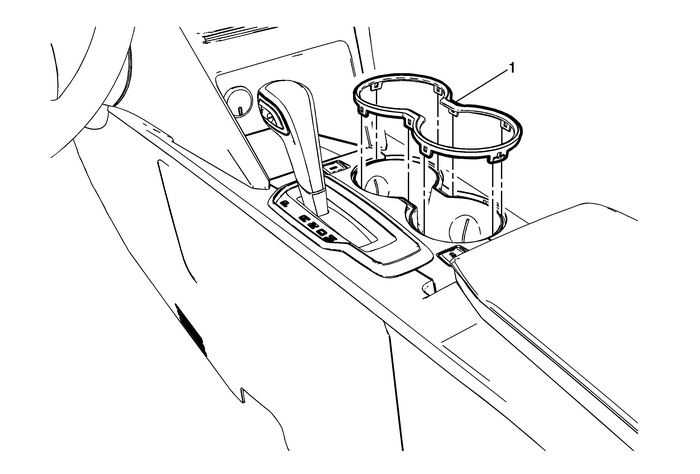

Front Floor Front Console Accessory Trim Bezel

Procedure

Use a flat bladed plastic trim tool in order to release the tabs securing the trimbezel to the front floor console accessory trim plate.
