Chevrolet Equinox Service Manual: Front Differential Drive Pinion Gear Bearing Cup and Lubricant Dam Replacement Automatic Transmission Unit

Chevrolet Equinox Service Manual / Powertrain / Transmission/Transaxle / Front Differential Drive Pinion Gear Bearing Cup and Lubricant Dam Replacement Automatic Transmission Unit

Table 1: Removal
Table 2: Installation

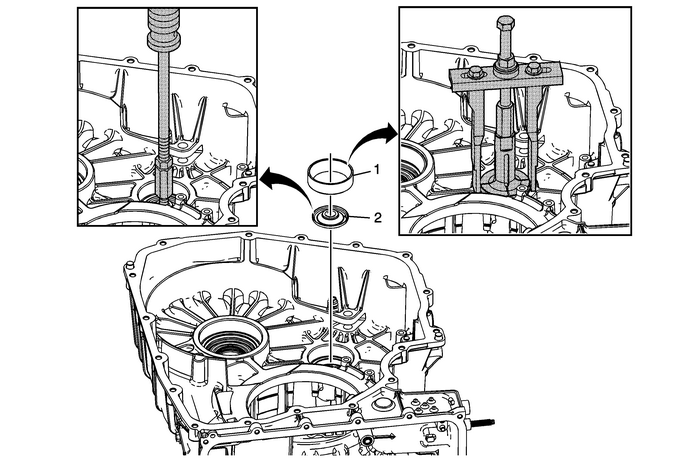

Removal

Front Differential Drive Pinion Gear Bearing Cup and Lubricant Dam Replacement Automatic Transmission Unit

Removal

Callout

Component Name

1

Front Differential Drive Pinion Gear Bearing Cup

Caution:Failure to apply the lubricant will cause damage to the boltand nut threads.

Note:

Tighten DT-45094 cup remover until it fits snugly on the bearing cup.Adjust DT 45124 removal bridge so it sits on the case surface just beyond the bearing cup opening.Apply the extreme pressure lubricant DT 23444-A extreme press lubricant to the puller bolt threads to prevent damage to the bolt threads during bearing cupremoval.Hold the puller bridge nut and turn the bolt to remove the bearing cup.Special ToolsDT 23444-A Extreme Press Lubricant-–-1/4 Ounce TubeDT-45094 Bearing Cup RemoverDT 45124 Removal Bridge

For equivalent regional tools, refer toSpecial Tools.

2

Front Differential Drive Pinion Gear Lube Dam

Special ToolsDT-48055 Lube Dam RemovalGE 6125-1B Slide Hammer with Adapter

For equivalent regional tools, refer toSpecial Tools.

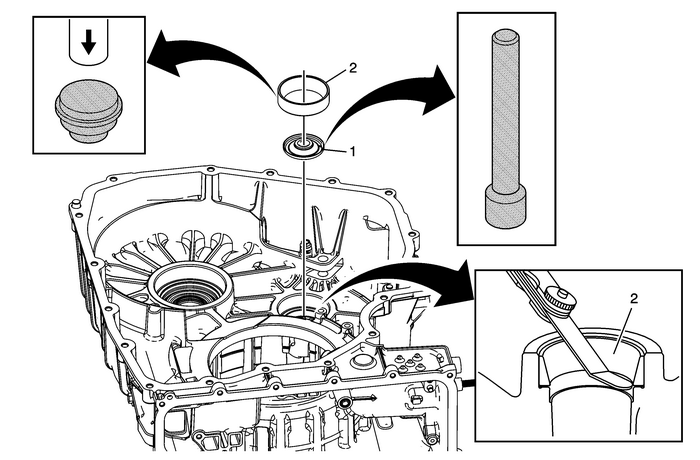

Installation

Front Differential Drive Pinion Gear Bearing Cup and Lubricant Dam Replacement Automatic Transmission Unit

Installation

Callout

Component Name

1

Front Differential Drive Pinion Gear Lube Dam

Special ToolsDT-46630 Lube Dam InstallerGE 8092 Driver Handle

For equivalent regional tools, refer toSpecial Tools.

2

Front Differential Drive Pinion Gear Bearing Cup

Caution:Support the back side of the case before installing thebearing cup. Apply a light coating of transmission fluid to thebore before pressing the cup into position. Install the bearing cupuntil it stops moving. Applying excessive pressure to the bearingcup once it is seated could cause damage to the casecasting.

Caution:An unseated or improperly installed bearing cup will resultin premature bearing failure. Visually inspect the bearing cup toinsure there is“no gap” between the case,thrust washer, and the bearing cup. Use of a feeler gauge mayassist in identifying a bearing cup that is not fullyseated.

Special Tools

DT-45087 Bearing Cup Installer

For equivalent regional tools, refer toSpecial Tools.
