Chevrolet Equinox Service Manual: Front Differential Carrier Bearing Replacement Automatic Transmission Unit

Chevrolet Equinox Service Manual / Powertrain / Transmission/Transaxle / Front Differential Carrier Bearing Replacement Automatic Transmission Unit

Table 1: Removal
Table 2: Installation

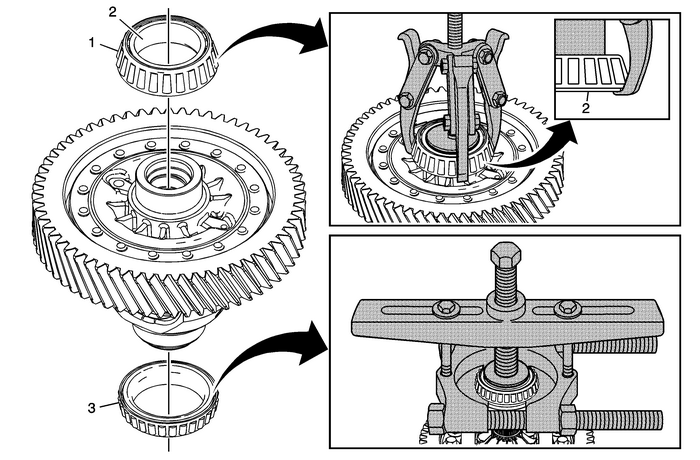

Removal

Front Differential Carrier Bearing Replacement Automatic Transmission Unit

Removal

Callout

Component Name

1

Front Differential Carrier Bearing Assembly

Special ToolsDT-41816 Three Legged PullerDT 41816-2 Step Plate

For equivalent regional tools, refer toSpecial Tools.

2

Inner Race

Note:Ensure all 3 legs of the puller make contact with the inner race of the bearing.

3

Front Differential Carrier Bearing Assembly

Note:

AWD differential may need longer bolts, 2–3/8-x-5-x-24 thread bolts.When removing the front differential carrier bearing assembly use DT 41816-2 step plate.Special ToolsDT 8433-1 Puller Bar or equivalentDT 22912-B Split Plate Bearing Remover or equivalentDT 41816-2 Step Plate

For equivalent regional tools, refer toSpecial Tools.

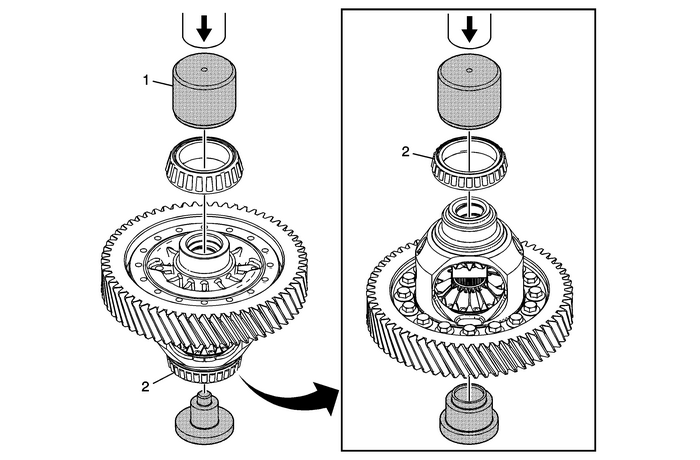

Installation

Front Differential Carrier Bearing Replacement Automatic Transmission Unit

Installation

Callout

Component Name

1

Front Differential Carrier Bearing Assembly

Caution:Pressing against the bearing assembly can damage the bearingand cause premature bearing failure.

Caution:There are first and second design front differential carrier bearings. First designbearings have twenty eight rollers and are manufactured by Timken. Second design bearingshave 30 rollers and are manufactured by NSK. If installing second design bearings,second design front differential carrier bearing cups must be used. All four partsmust be kept as a set to prevent damage to the transmission.

Special Tools

DT-47928 Bearing Installer

For equivalent regional tools, refer toSpecial Tools.

2

Front Differential Carrier Bearing Assembly

Caution:Pressing against the bearing assembly can damage the bearingand cause premature bearing failure.

Caution:There are first and second design front differential carrier bearings. First designbearings have twenty eight rollers and are manufactured by Timken. Second design bearingshave 30 rollers and are manufactured by NSK. If installing second design bearings,second design front differential carrier bearing cups must be used. All four partsmust be kept as a set to prevent damage to the transmission.

Special Tools

DT-47928 Bearing Installer

For equivalent regional tools, refer toSpecial Tools.
