Catalytic Converter Replacement - Right Side (LFX) Emissions Catalytic Converter

Catalytic Converter Replacement - Right Side

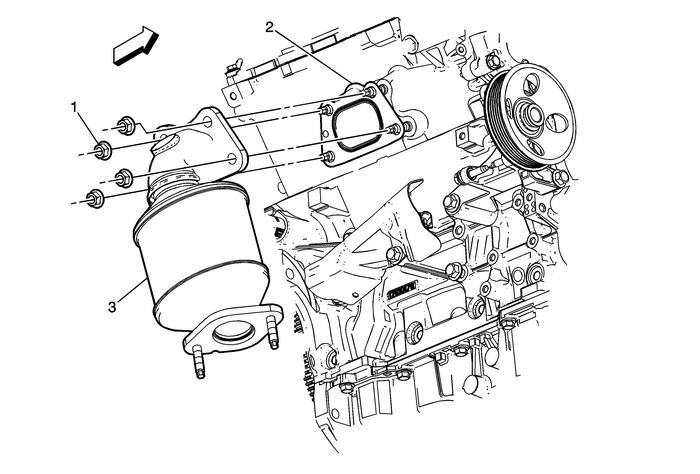

Callout

Component Name

Warning:Refer toHot Exhaust System Warning.

Preliminary ProcedureDisconnect the oxygen sensor electrical connectors.Remove the catalytic converter heat shield.Refer toCatalytic Converter Heat Shield ReplacementRemove the exhaust flexible pipe. Refer toExhaust Flexible Pipe Replacement.

1

Catalytic Converter Nut (Qty:-4)

Caution:Refer toFastener Caution.

Caution:To prevent damage to the exhaust manifold flange or stud,make sure the flange is fully seated before tightening.

ProcedureReplace nuts and gasket with new ones.Clean and inspect the studs on the engine cylinder head,replace as necessary.Verify that the studs are fully seated. Stud collar shouldtouch the surface of the engine cylinder head.Tighten nuts in a criss-cross pattern.Tighten

First Pass: 20-Y(15-lb-ft)Final Pass: 46-Y(34-lb-ft)

2

Gasket

Tip:Improperly installed and/or leaking exhaust manifold gasketsmay affect vehicle emissions and/or On-Board Diagnostics (OBD) IIsystem performance.

3

Catalytic Converter

Tip:If replacing catalytic converter,transfer both oxygensensors.
