Duct Air Temperature Sensor Replacement - Lower Engine Control Engine Control Sensors Intake Air Temp Sensor

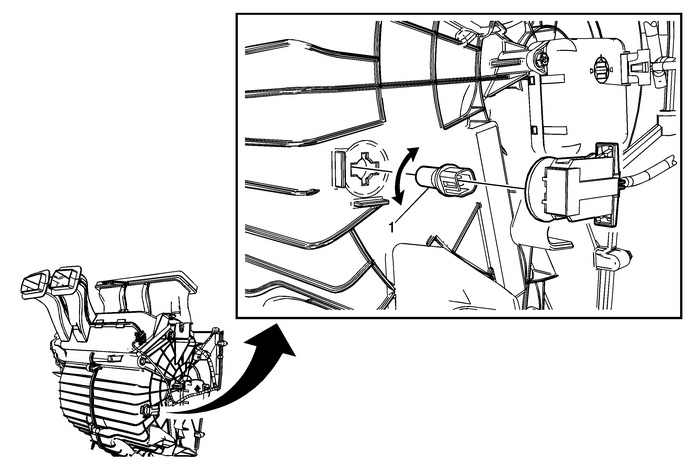

Duct Air Temperature Sensor Replacement - Lower

Callout

Component Name

Preliminary ProcedureRemove I/P Compartment door. Refer toInstrument Panel Compartment Door ReplacementDisconnect electrical connections.

Air Temperature Sensor– Lower

Tip:Rotate sensor¼ turn to remove

Inspection/Maintenance System Check Engine Control

Diagnostic InstructionsPerform theDiagnostic System Check - Vehicleprior to using thisdiagnostic procedure.ReviewStrategy Based Diagnosisfor an overview of thediagnostic approach.Diagnostic Procedure ...

Duct Air Temperature Sensor Replacement - Upper Engine Control Engine Control Sensors Intake Air Temp Sensor

Duct Air Temperature Sensor Replacement - UpperCalloutComponent NamePreliminary ProcedureRemove the I/P compartment door. Refer toInstrument Panel Compartment Door Replacement.Disconnect the electrica ...
