Front Bumper Fascia Side Retainer Replacement (Terrain) Bumpers Front Bumper

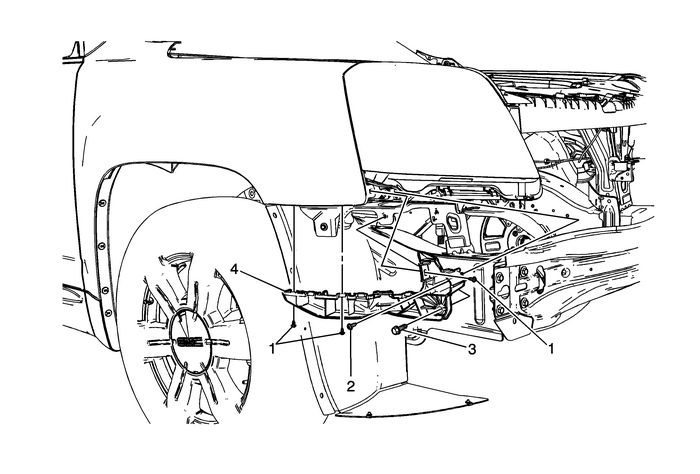

Front Bumper Fascia Side Retainer Replacement

Callout

Component Name

Preliminary Procedure

Remove the front bumper fascia. Refer toFront Bumper Fascia Replacement.

1

Front Bumper Fascia Side Retainer Screw(Qty:-3)

Caution:Refer toFastener Caution.

Tighten

2-Y(18-lb-in)

2

Front Bumper Fascia Side Retainer Bolt

Tighten

10-Y(89-lb-in)

3

Front Bumper Fascia Side Retainer Bolt

Tighten

4-Y(56-lb-in)

4

Front Bumper Fascia Side Retainer
