Preliminary ProcedureDrain the cooling system. Refer toCooling System Draining and Filling.Remove the intake manifold cover. Refer toIntake Manifold Cover Replacement.Remove the fuel pipe shield. Refer toFuel Pipe Shield Replacement | |

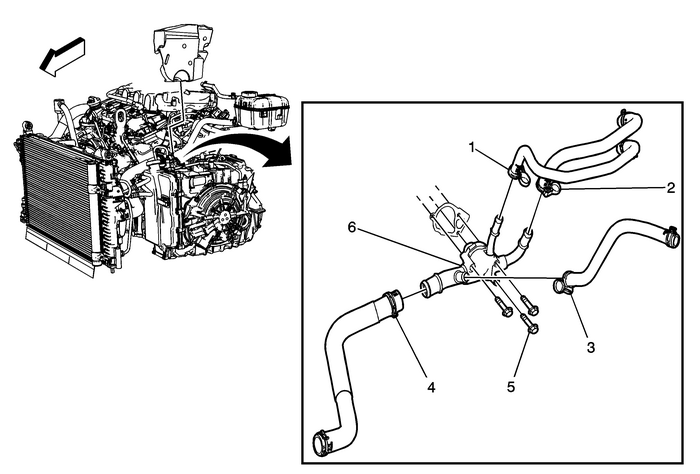

1 | Heater Outlet Hose |
2 | Heater Inlet Hose |
3 | Surge Tank Hose |
4 | Radiator Outlet Hose |
5 | Bolt (Qty:-3) Caution:Refer toFastener Caution. Tighten10-Y (89-lb-in) |
6 | Engine Cooling Thermostat Housing Tip:Clean the engine block and thermostat gasket surfaces.Replace the gasket and any worn hoses. |
