Front Bumper Fascia Support Replacement Bumpers Front Bumper

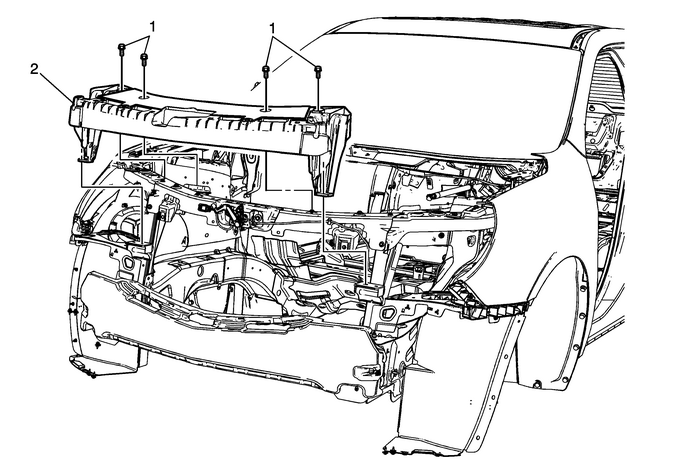

Front Bumper Fascia Support Replacement

Callout

Component Name

Preliminary Procedure

Remove the headlamps. Refer toHeadlamp Replacement.

1

Front Bumper Fascia Support Bolt (Qty:-4)

Caution:Refer toFastener Caution.

Tighten

10-Y(89-lb-in)

2

Front Bumper Fascia Support

Procedure

Slide forward and upward.
