Front Bumper Fascia Opening Cover Replacement (Terrain) Bumpers Front Bumper

h//i__

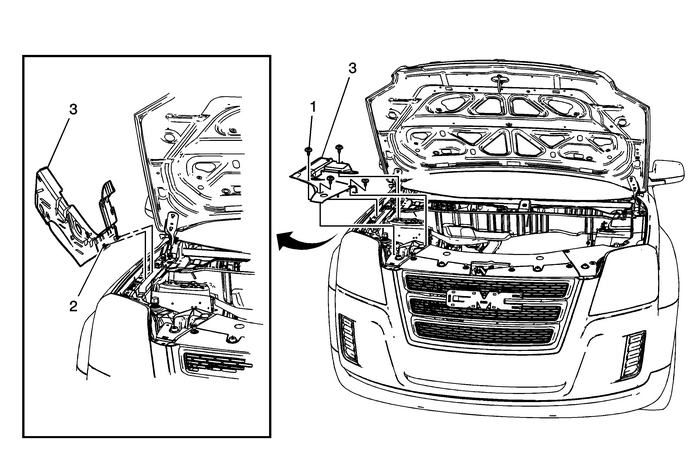

Front Bumper Fascia Opening Cover Replacement

Callout

Component Name

1

Front Bumper Fascia Opening Cover Push-In Retainer(Qty:-4)

Procedure

Disengage the front retainer by the grille.

2

Front Bumper Fascia Opening Cover Retainer

Procedure

Rotate and pull the cover up.

3

Front Bumper Fascia Opening Cover
