Front Wheelhouse Liner Replacement (Terrain) Panels Wheel Well Liner

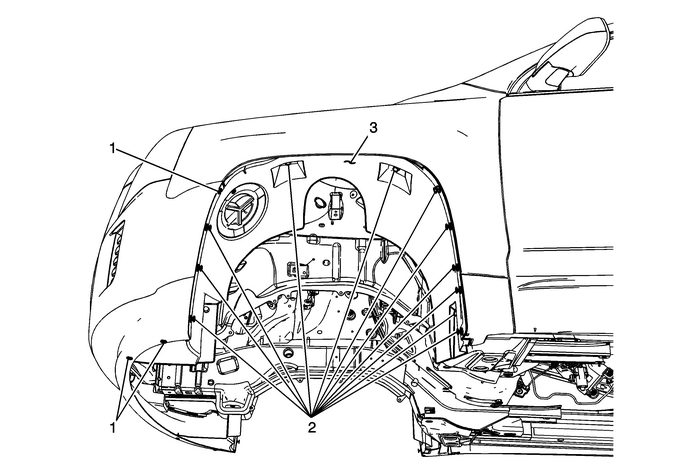

Front Wheelhouse Liner Replacement

Callout

Component Name

Preliminary Procedure

Remove the tire and wheel assembly. Refer toTire and Wheel Removal and Installation.

1

Front Wheelhouse Liner Screw (Qty:-3)

Caution:Refer toFastener Caution.

Tighten

3-Y(27-lb-in)

2

Front Wheelhouse Liner Push-In Retainer(Qty:-11)

3

Front Wheelhouse Liner
