Hood Adjustment Panels

Hood Adjustment

Callout

Component Name

Hood

Caution:Refer toFastener Caution.

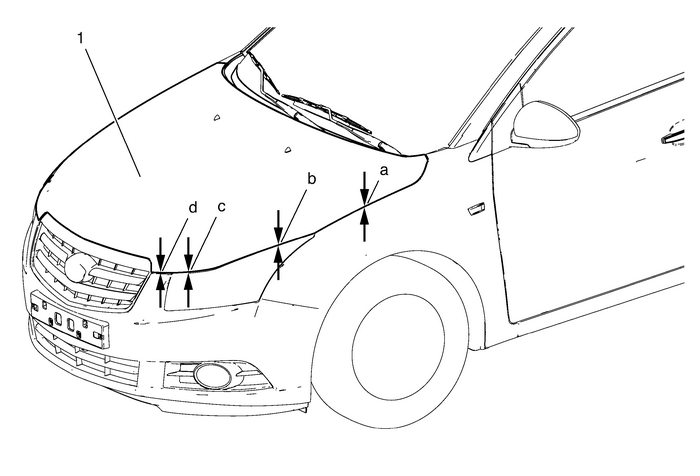

ProcedureLoosen the hood hinge reinforcementnuts-(Qty:-4).Adjust the hood in order to obtain an even gap on both sidesbetween the hood and the fenders, the headlamps and the frontbumper fascia and so that the hood is flush with both fenders onthe front edge, the front bumper fascia and the headlamps.Hood to frontfender-(a)-3.0-mm-±-0.75-mm(0.12-in-±-0.03-in)Hood toheadlamp-(b)-3.0-mm-±-1.0-mm(0.12-in-±-0.04-in)Hood toheadlamp-(c)-4.5-mm-±-1.5-mm(0.18-in-±-0.06-in)Hood to front bumperfascia-(d)-4.0-mm-±-1.0-mm(0.16-in-±-0.04-in)Tighten

25-Y(18-lb-ft)
