Front Bumper Energy Absorber Replacement (Terrain) Bumpers Front Bumper

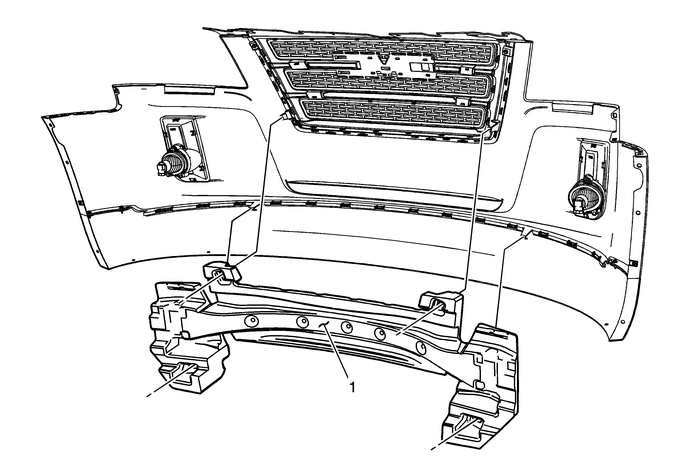

Front Bumper Energy Absorber Replacement

Callout

Component Name

Preliminary Procedure

Remove the front bumper fascia. Refer toFront Bumper Fascia Replacement.

1

Front Bumper Energy Absorber

Procedure

Release the 4 retainer clips.
