Coolant Heater Cord Replacement (LEA) Engine Cooling

Coolant Heater Cord Replacement

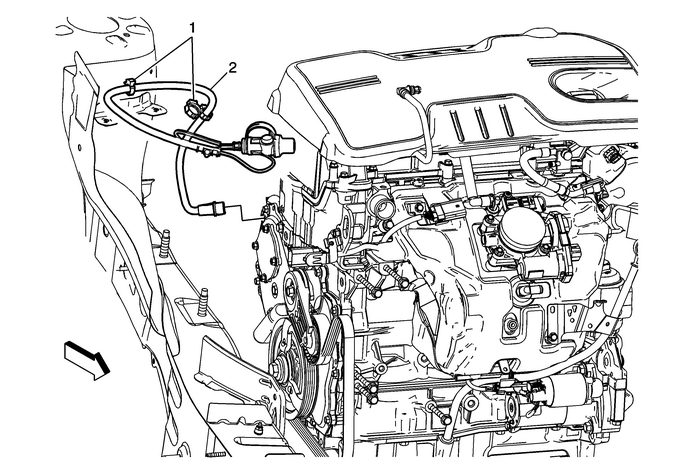

Callout

Component Name

Preliminary Procedure

Lift and support the vehicle. Refer toLifting and Jacking the Vehicle.

1

Retainers

2

Coolant Heater Cord
