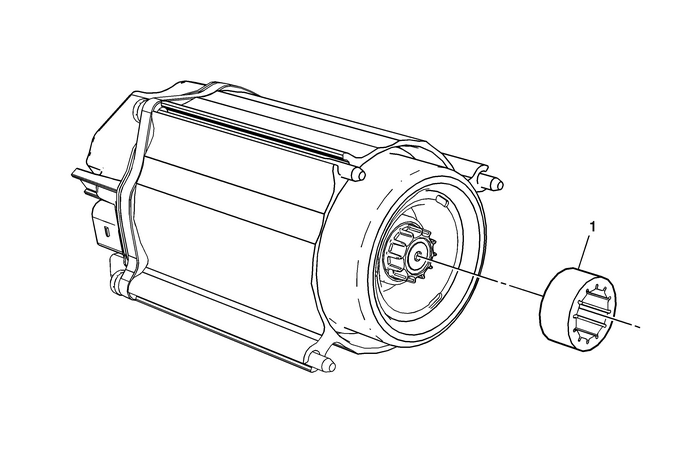

Steering Gear Drive Coupling Replacement Steering Gear Assembly

Steering Gear Drive Coupling Replacement

Callout

Component Name

Preliminary Procedure

Remove the power steering assist motor. Refer toPower Steering Assist Motor Replacement.

1

Steering Gear Drive Coupling

Note:The steering gear drive coupling connects the power steering assist motor to the steeringgear.
