Steering Gear Pipe and Seal Replacement Steering Gear Assembly

Steering Gear Pipe and Seal Replacement

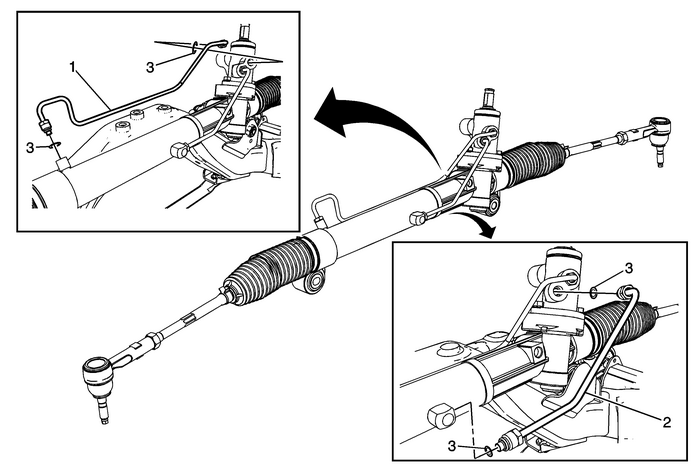

Callout

Component Name

Preliminary Procedure

Remove the hydraulic power steering gear. Refer toSteering Gear Replacement

1

Steering Gear Pipe

Caution:Refer toFastener Caution.

Tighten

16-Y (12-lb-ft)

2

Steering Gear Pipe

Tighten

16-Y (12-lb-ft)

3

Steering Gear Pipe Seal (Qty:-4)

ProcedureRemove the steering gear pipe seals.

Discard the seals.

Install NEW steering gear pipe seals.
