Front Bumper Energy Absorber Replacement Bumpers Front Bumper

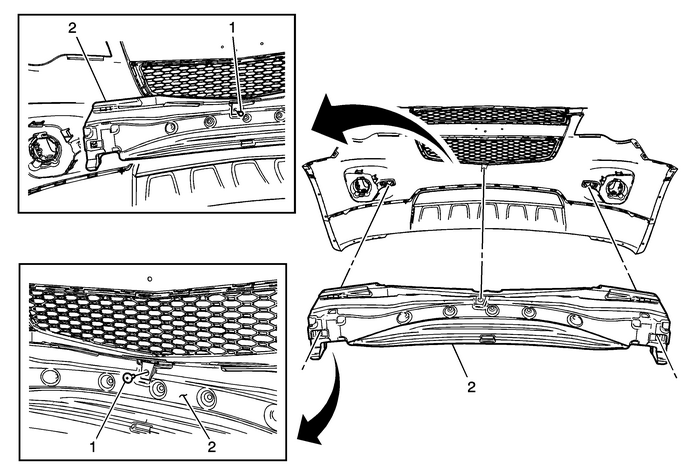

Front Bumper Energy Absorber Replacement

Callout

Component Name

Preliminary Procedure

Remove the front bumper fascia. Refer toFront Bumper Fascia Replacement.

1

Front Bumper Energy Absorber Bolt

Caution:Refer toFastener Caution.

Tighten

7-Y(62-lb-in)

2

Front Bumper Energy Absorber
