Evaporative Emission Line Replacement - Canister to Tank Engine Control

Evaporative Emission Line Replacement - Canister to Tank

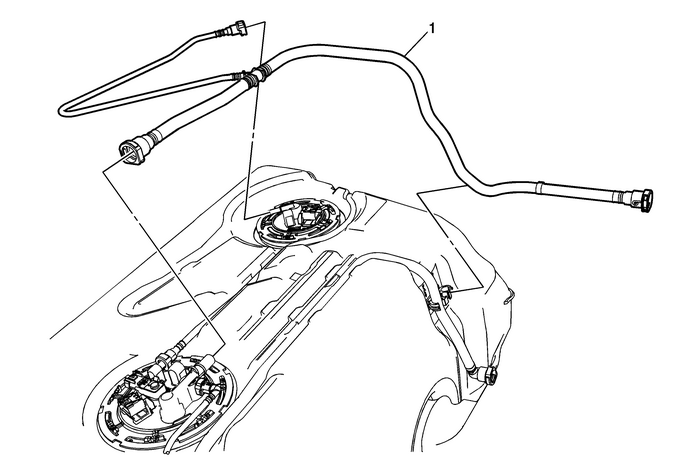

Callout

Component Name

Preliminary ProcedureRemove the fuel tank. Refer toFuel Tank Replacement.Disconnect the plastic quick connects. Refer toPlastic Collar Quick Connect Fitting Service.

1

Evaporative Emission Line Canister to Tank

Procedure

Disconnect the electrical connector.
