Cooling Fan and Shroud Replacement (LEA) Engine Cooling Radiator Fan

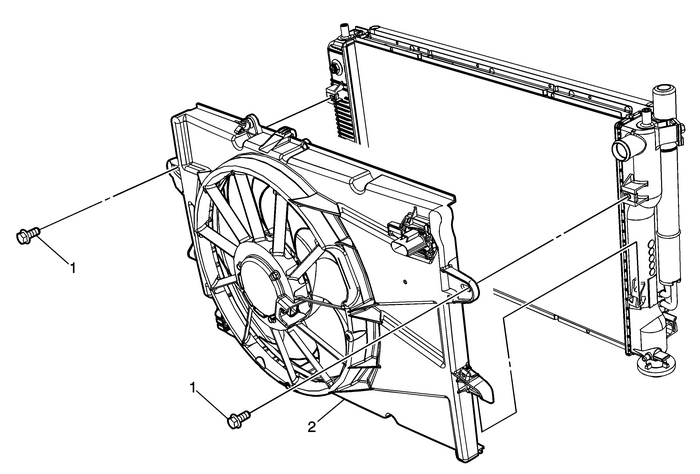

Engine Coolant Fan Shroud Replacement

Callout

Component Name

Preliminary ProceduresReposition radiator. Refer toRadiator Replacement.Unclip transmission cooler lines from shroud.Unclip air conditioning lines from shroud.Disconnect engine coolant fan motor electricalconnector.Disconnect engine coolant fan resistor electricalconnector.

1

Engine Coolant Fan Shroud Fastener (Qty:-2)

Caution:Refer toFastener Caution.

Tighten

9-Y(80-lb-in)

2

Engine Coolant Fan Shroud

Engine Coolant Fan Resistor Replacement Engine Cooling
Engine Coolant Fan Resistor ReplacementCalloutComponent NamePreliminary ProceduresDisconnect the engine coolant fan resistor electricalconnector.1Engine Coolant Fan ResistorProcedureDepress tab on the ...

Cooling System Description and Operation Engine Cooling
Engine Coolant Indicator(s)LOW COOLANT LEVELThe IPC illuminates the low coolant warning indicator whenany of the following occur:The BCM detects a low coolant level condition for at least30-seconds. T ...
