Engine Coolant Temperature Sensor Replacement Engine Control Engine Control Sensors Engine Coolant Temp Sensor

Engine Coolant Temperature Sensor Replacement

Callout

Component Name

Preliminary Procedure

Partially drain the cooling system. Refer toCooling System Draining and Filling.

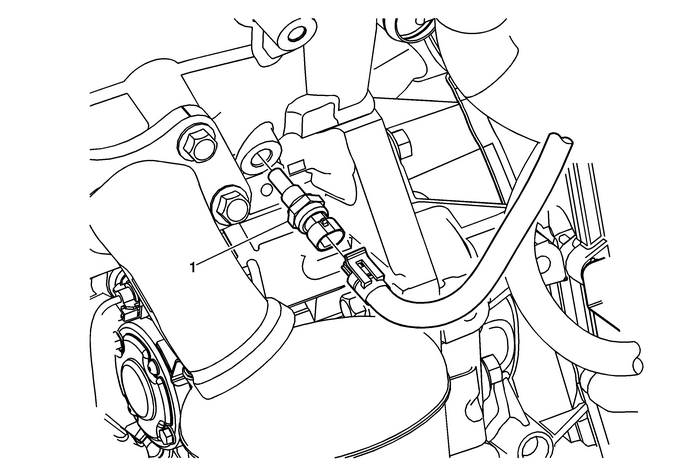

1

Engine Coolant Temperature Sensor

Caution:Refer toComponent Fastener Tightening Caution.

ProcedureReposition the sensor heat shield.Disconnect the ECT sensor harness connector.

Tighten

20-Y (15-lb-ft)
