Engine Coolant Thermostat Replacement (LFX) Engine Cooling Thermostat

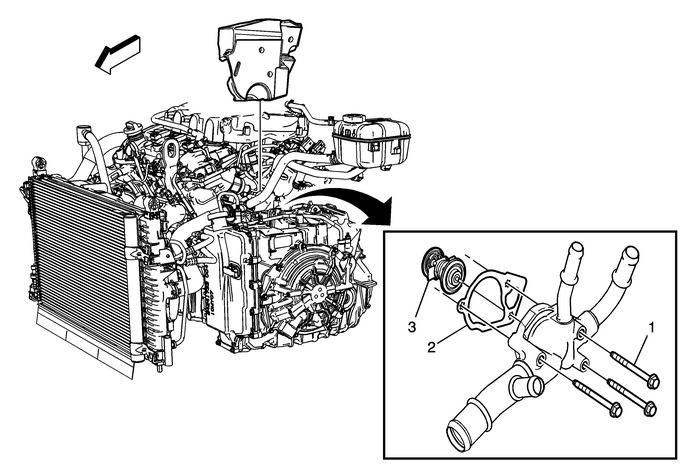

Engine Coolant Thermostat Replacement

Callout

Component Name

Preliminary Procedure Remove the engine cooling thermostat housing. Refer toEngine Coolant Thermostat Housing Replacement.
1	Bolt (Qty:-3) Caution:Refer toFastener Caution. Tighten 10-Y (89-lb-in)
2	Engine Cooling Thermostat Gasket
3	Engine Cooling Thermostat Tip:Clean the engine block and thermostat gasket surfaces.Replace gasket and any worn hoses.
