Chevrolet Equinox Service Manual: Engine Coolant Thermostat Replacement (LEA) Engine Cooling Thermostat

Chevrolet Equinox Service Manual / Powertrain / Engine / Engine Coolant Thermostat Replacement (LEA) Engine Cooling Thermostat

Engine Coolant Thermostat Replacement (LEA) Engine Cooling Thermostat

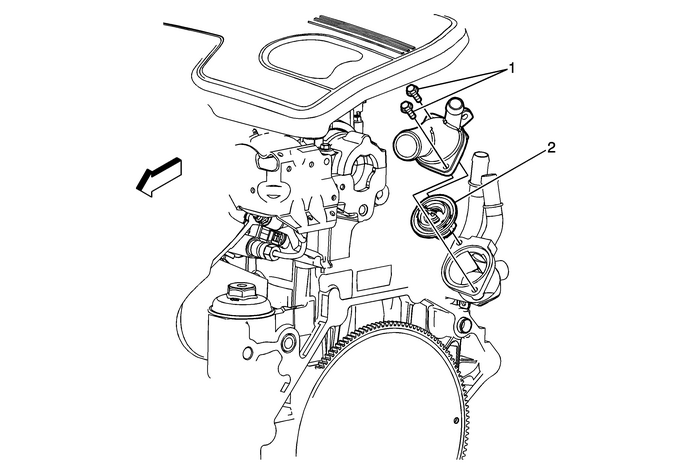

Engine Coolant Thermostat Replacement

Callout

Component Name

Preliminary ProceduresRaise the vehicle by its full height. Refer toLifting and Jacking the Vehicle.Draining the cooling system. Refer toCooling System Draining and Filling.Disconnect the engine coolant outlet hose and the radiator surge tank outlet hose,from the thermostat housing.

1

Engine Coolant Thermostat Bolt (Qty:-2)

Caution:Refer toFastener Caution.

Tighten

10-Y-(89-lb-in)

2

Engine Coolant Thermostat

Note:Loosen the drain bolt at the bottom of the water pump and drain the coolant from theengine block.
