Rear Side Door Replacement Panels

Rear Side Door Replacement

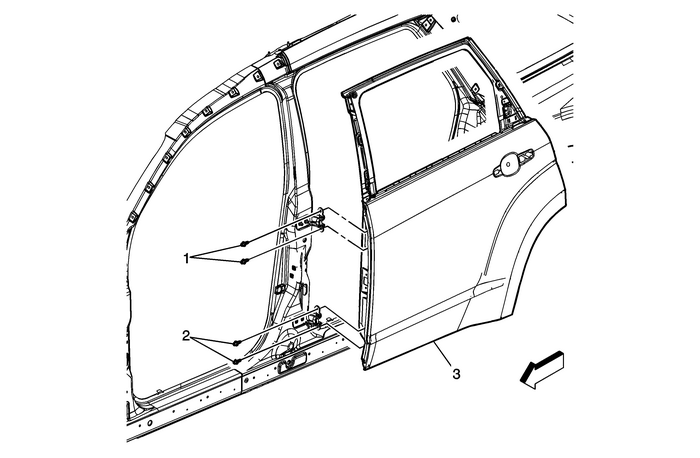

Callout

Component Name

Warning:Refer toSIR Warning.

Preliminary ProceduresDisable the supplemental inflatable restraint (SIR) system.Refer toSIR Disabling and Enabling.Remove the rear door trim panel. Refer toRear Side Door Trim Panel Replacement.Remove rear side door check link. Refer toRear Side Door Check Link Replacement.

1

Rear Side Door Upper Bolt to Door (Qty:-2)

Caution:Refer toFastener Caution.

ProcedureRemove the water deflector.Support the door before removing the hinge bolts.Disconnect the electrical connector, if equipped.Tighten

25-Y(18-lb-ft)

2

Rear Side Door Lower Bolt to Door (Qty:-2)

Tighten

25-Y(18-lb-ft)

3

Rear Side Door

ProcedureWith the aid of an assistant, remove the door.If installing a new door, transfer all the necessarycomponents.Verify door is properly aligned. If door adjustments areneeded, refer toRear Side Door Adjustment.
