Rear Side Door Lower Rear Auxiliary Sealing Strip Replacement Panels

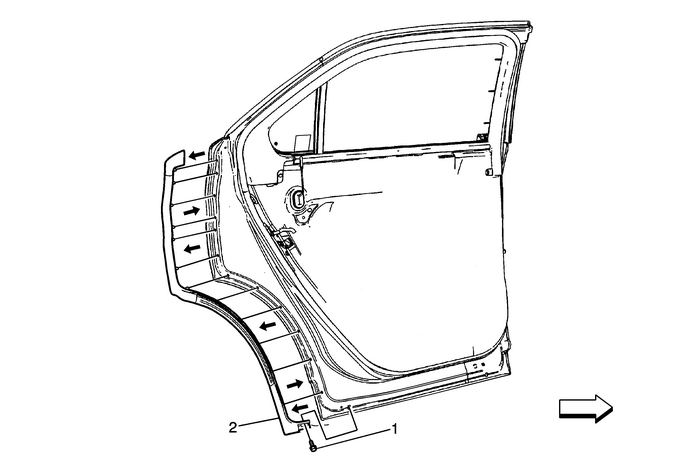

Rear Side Door Lower Rear Auxiliary Sealing Strip Replacement

Callout

Component Name

1

Rear Side Door Lower Auxiliary Weatherstrip Fastener

2

Rear Side Door Lower Auxiliary Weatherstrip
