Chevrolet Equinox Owners Manual: Engine Compartment Overview

Chevrolet Equinox Owners Manual / Vehicle Care / Vehicle Checks / Engine Compartment Overview

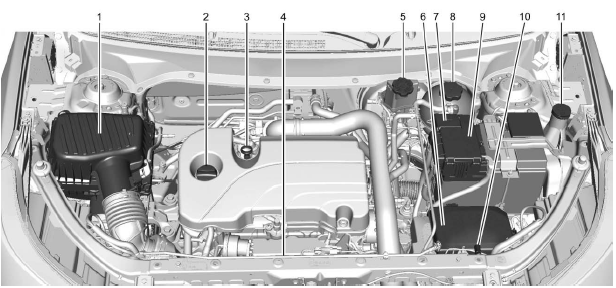

1.5L Gas Engine
1.5L Gas Engine

  1. Engine Air Cleaner/Filter.
  2.  Engine Oil Fill Cap. See Engine Oil.
  3.  Engine Oil Dipstick. See Engine Oil.
  4.  Engine Cooling Fan. See Cooling System.
  5.  Brake Fluid Reservoir. See Brake Fluid.
  6.  Engine Compartment Fuse Block.
  7.  Remote Positive (+) Terminal (Under Cover). See Jump Starting - North America.
  8.  Engine Coolant Surge Tank and Pressure Cap. See Cooling System.
  9.  Battery - North America.
  10.  Remote Negative (−) Terminal.

    See Jump Starting - North America.

  11.  Windshield Washer Fluid Reservoir. See Washer Fluid.

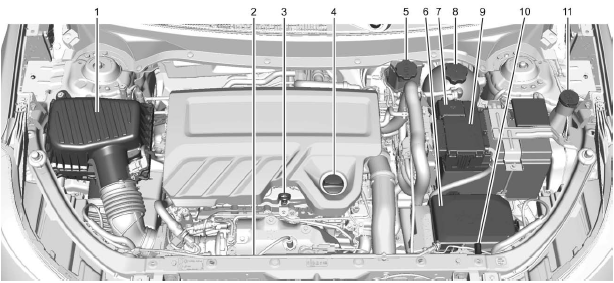

1.6L L4 Diesel Engine
1.6L L4 Diesel Engine

  1. Engine Air Cleaner/Filter.
  2. Engine Cooling Fan. See Cooling System.
  3. Engine Oil Dipstick. See Engine Oil.
  4.  Engine Oil Fill Cap. See Engine Oil.
  5.  Brake Fluid Reservoir. See Brake Fluid.
  6.  Engine Compartment Fuse Block.
  7.  Remote Positive (+) Terminal (Under Cover). See Jump Starting - North America.
  8.  Engine Coolant Surge Tank and Pressure Cap. See Cooling System.
  9.  Battery - North America.
  10.  Remote Negative (−) Terminal.

    See Jump Starting - North America.

  11.  Windshield Washer Fluid Reservoir. See Washer Fluid.

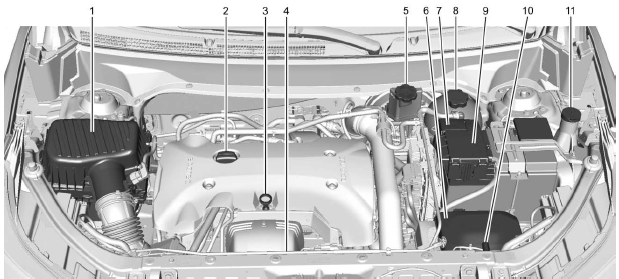

2.0L Gas Engine
2.0L Gas Engine

  1. Engine Air Cleaner/Filter.
  2.  Engine Oil Fill Cap. See Engine Oil.
  3.  Engine Oil Dipstick. See Engine Oil.
  4.  Engine Cooling Fan. See Cooling System.
  5.  Brake Fluid Reservoir. See Brake Fluid.
  6.  Engine Compartment Fuse Block.
  7.  Remote Positive (+) Terminal (Under Cover). See Jump Starting - North America.
  8.  Engine Coolant Surge Tank and Pressure Cap. See Cooling System.
  9. Battery - North America.
  10.  Remote Negative (−) Terminal.

    See Jump Starting - North America.

  11.  Windshield Washer Fluid Reservoir. See Washer Fluid.
Hood
To open the hood: Pull the hood release lever with this symbol on it. It is on the lower left side of the instrument panel between the door and the steering wheel. Go to the fron ...

Engine Oil
To ensure proper engine performance and long life, careful attention must be paid to engine oil. Following these simple, but important steps will help protect your investment:  Use eng ...
