Chevrolet Equinox Service Manual: Driver or Passenger Seat Recliner Actuator Cable Replacement Seats

Chevrolet Equinox Service Manual / Body / Seating / Driver or Passenger Seat Recliner Actuator Cable Replacement Seats

Removal ProcedureRemove the driver or passenger seat outer adjuster finishcover. Refer toDriver or Passenger Seat Outer Adjuster Finish Cover Replacement.

Driver or Passenger Seat Recliner Actuator Cable Replacement Seats

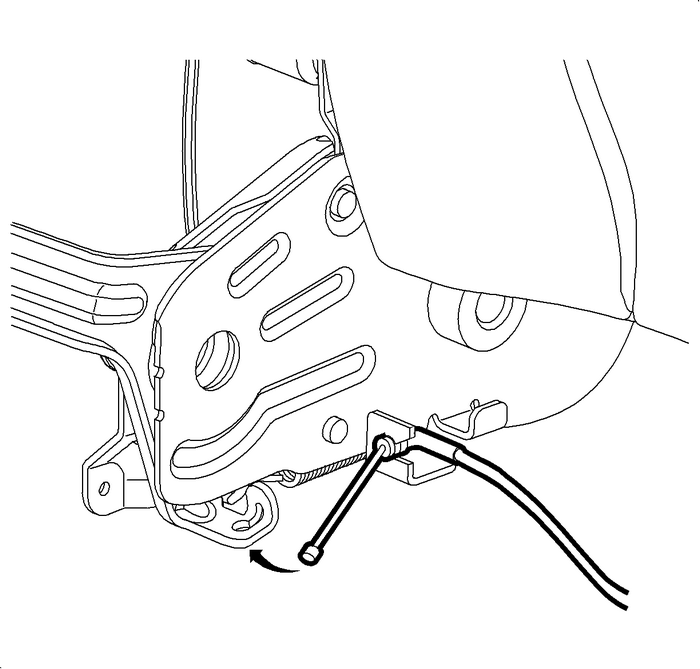

Use a small flat-bladed tool remove the seat recliner cablefrom the inner recliner cable clips.Remove the seat recliner cable from the outer reclinermechanism and release lever.Installation Procedure

Driver or Passenger Seat Recliner Actuator Cable Replacement Seats

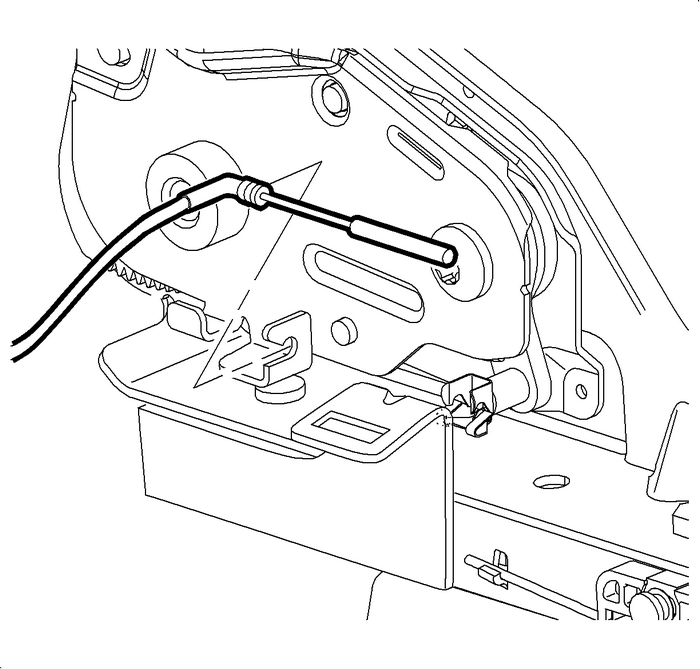

Install the seat recliner cable mechanism into the outerrecliner mechanism.Snap the recliner cable into the inner reclinermechanism.

Driver or Passenger Seat Recliner Actuator Cable Replacement Seats

Remove the slack from the recliner cable by turning thethreaded end of the cable in the clip.Install the seat cushion cover/pad assembly. Refer toFront Seat Cushion Cover and Pad Replacement.Install the seat into the vehicle. Refer toDriver or Passenger Seat Removal and Installation.
