Removal Procedure

Rear Seat Back Cushion Latch Cable Replacement Seats Rear

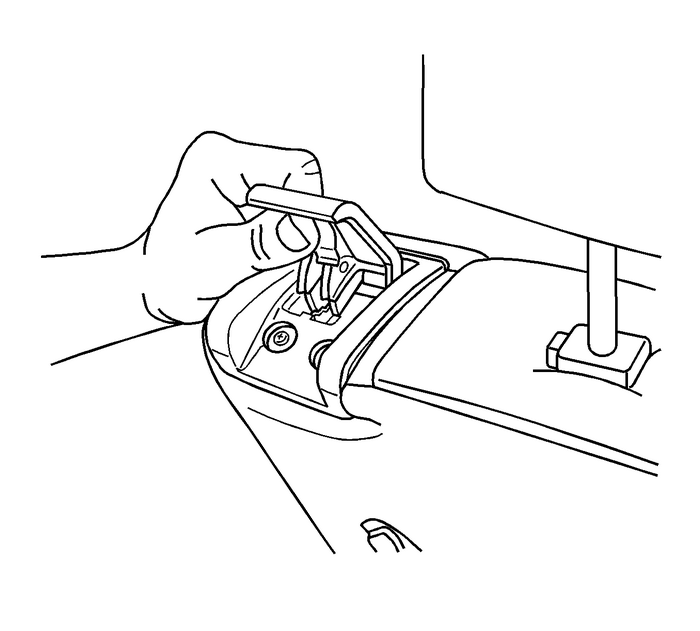

Remove the rear seat. Refer toRear Seat Removal and Installation.Remove the fastener from the rear seat back latch and pullthe latch out from the seat back assembly.

Rear Seat Back Cushion Latch Cable Replacement Seats Rear

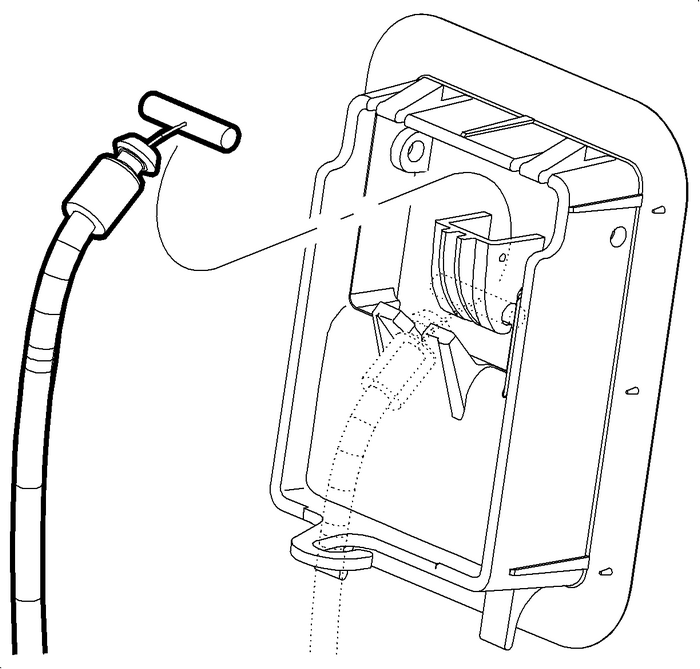

Detach the latch cable from the latch.

Rear Seat Back Cushion Latch Cable Replacement Seats Rear

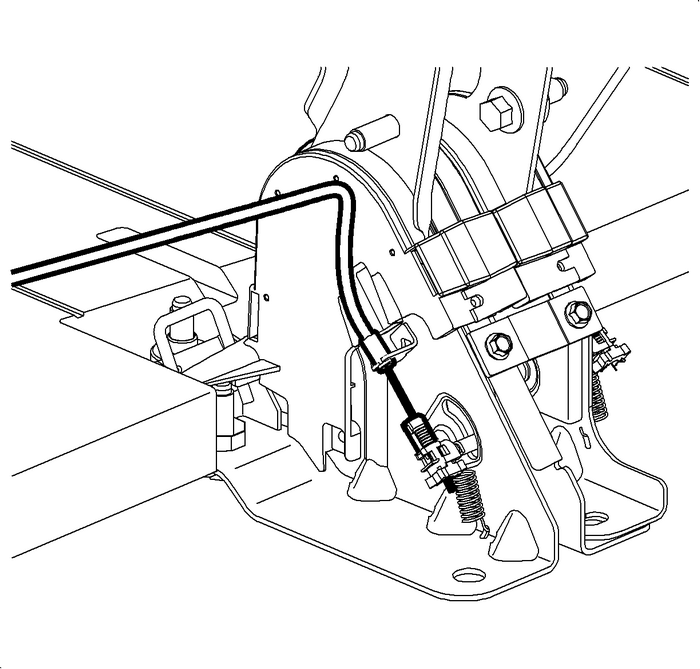

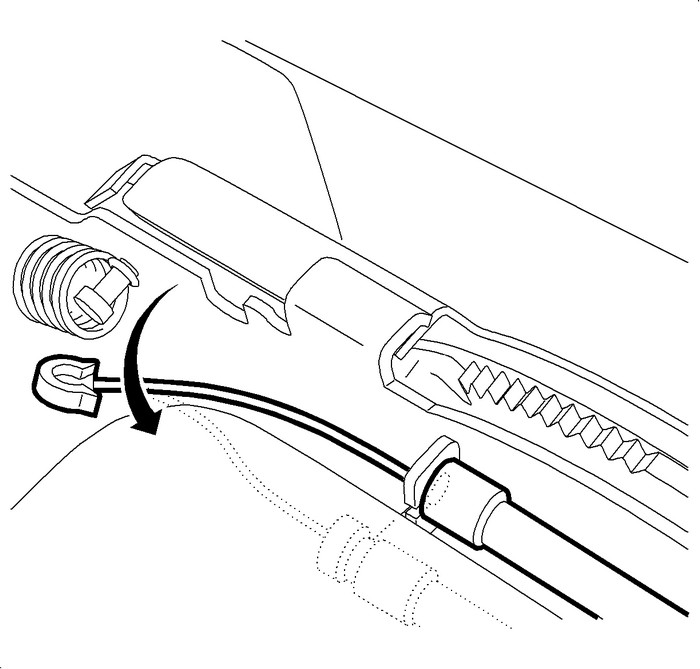

If you are going to replace the cable, disconnect the latchcable at the seat recliner mechanism.

Rear Seat Back Cushion Latch Cable Replacement Seats Rear

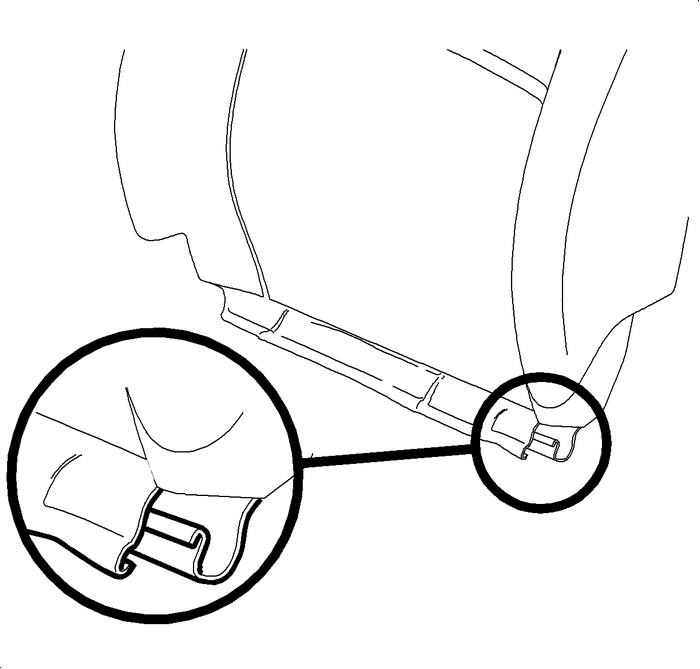

Open the J-strip at the bottom of the seat cover.

Rear Seat Back Cushion Latch Cable Replacement Seats Rear

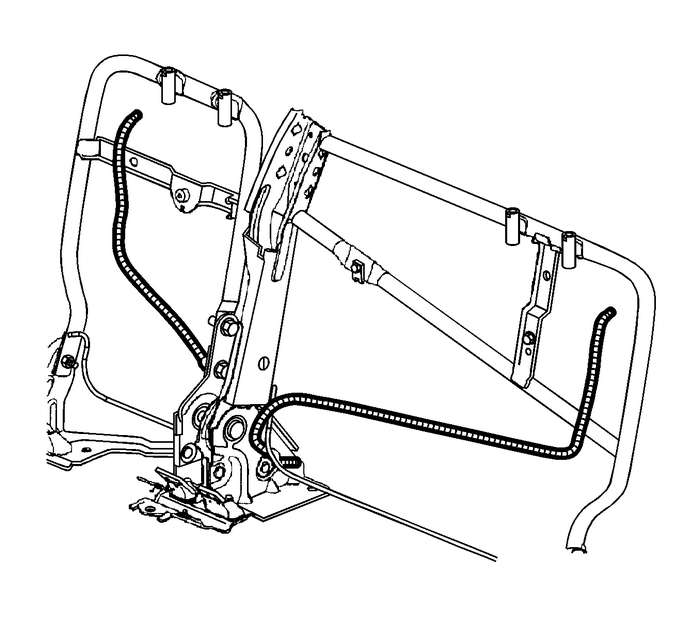

Attach a mechanics wire to the cable to guide it through theseat back.Pull the cable out from the seat back assembly.Installation Procedure

Rear Seat Back Cushion Latch Cable Replacement Seats Rear

Attach a mechanics wire to the new cable to guide it throughthe seat back.If you are replacing the cable, route the cable through therear seat back.

Rear Seat Back Cushion Latch Cable Replacement Seats Rear

Connect the latch cable to the recliner mechanism.

Rear Seat Back Cushion Latch Cable Replacement Seats Rear

Connect the J-strip at the bottom of the seat cover.Connect the latch cable to the latch assembly.

Rear Seat Back Cushion Latch Cable Replacement Seats Rear

Caution:Refer toFastener Caution.

Install the latch to the seat back with a fastener andtighten to2.5-Y(22-lb-in).Install the rear seat. Refer toRear Seat Removal and Installation.
Driver or Passenger Seat Recliner Actuator Cable Replacement Seats
Removal ProcedureRemove the driver or passenger seat outer adjuster finishcover. Refer toDriver or Passenger Seat Outer Adjuster Finish Cover Replacement.Use a small flat-bladed tool remove the seat r ...

Rear Seat Cushion Cover and Pad Replacement Seats Rear
Removal ProcedureRemove the rear seat. Refer toRear Seat Removal and Installation.Remove the rear seat center seat belt anchor bolt and belt from the frame only. RefertoRear Seat Center Belt Replaceme ...
