Rear Seat Shoulder Belt Guide Opening Bezel Replacement Seats

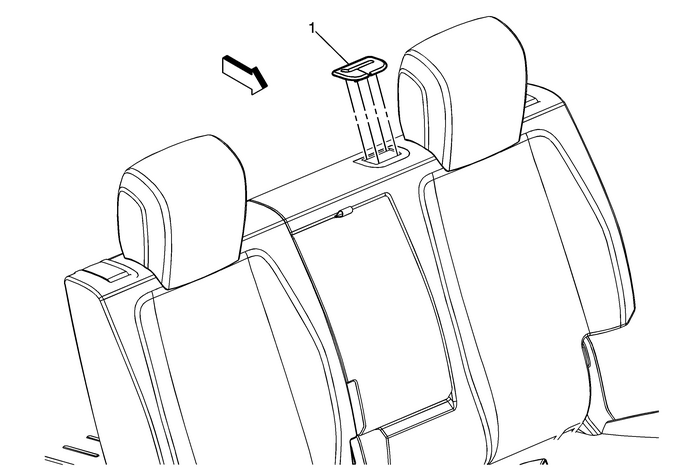

Rear Seat Shoulder Belt Guide Opening Bezel Replacement

Callout

Component Name

1

Rear Seat Shoulder Belt Opening Bezel

Procedure

Push inward and upward from the front of the bezel to releasefrom the seat back.

Tip:The rear seat shoulder belt opening bezel is part of the rearseat center belt assembly and is replaced as an assembly.
