Drive Pinion Flange/Yoke and/or Oil Seal Replacement Axles Rear

Drive Pinion Flange/Yoke and/or Oil Seal Replacement

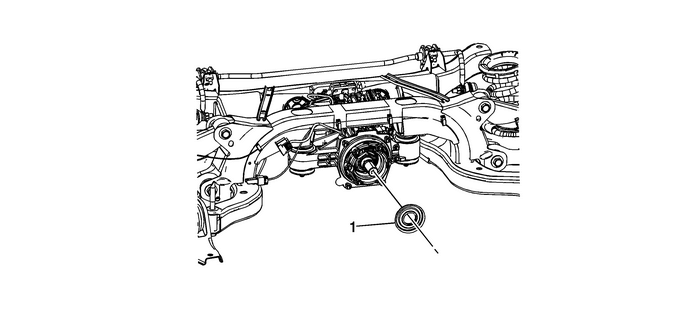

Callout

Component Name

Preliminary ProceduresRaise and support the vehicle. Refer toLifting and Jacking the Vehicle.Remove the differential clutch drum assembly. Refer toRear Wheel Drive Module Clutch Housing Replacement.

1

Differential Pinion Seal

ProcedureInstall a sheet metal screw into the seal.Attach a pair of pliers or a slider hammer to the screw and remove the seal.Using the slide hammer or pliers, remove the seal.Using theJ 44636-1installer, install the pinion seal.Inspect the fluid level. Refer toRear Axle Lubricant Level Inspection.

Tip:The pinion flange, the nut and the dust cover are NOT SERVICED separately. These itemsare serviced with the differential clutch drum assembly.

Special Tools

J 44636-1Front Output Shaft Seal Installer

Differential Oil Replacement Axles Rear
Differential Oil ReplacementCalloutComponent NamePreliminary ProcedureRaise the vehicle. Refer toLifting and Jacking the Vehicle.1Plug Differential Drain PlugCaution:Refer toComponent Fastener Tighten ...

Fastener Tightening Specifications - Propeller Shaft Assembly Driveshafts Propeller Shaft Assembly
Fastener Tightening SpecificationsApplicationSpecificationMetricEnglishCenter Bearing-to-Vehicle Underbody Bolts25-Y19-lb-ftPropeller Shaft-to-Rear Differential Flange Bolts50-Y37-lb-ftPropeller Shaft ...
