Differential Oil Replacement Axles Rear

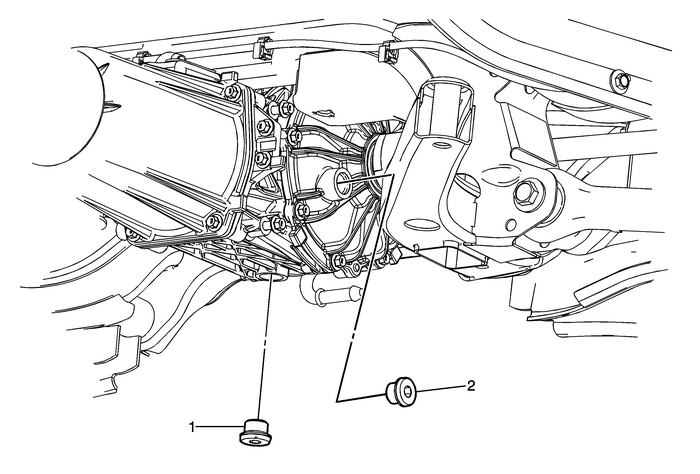

Differential Oil Replacement

Callout

Component Name

Preliminary Procedure

Raise the vehicle. Refer toLifting and Jacking the Vehicle.

1

Plug Differential Drain Plug

Caution:Refer toComponent Fastener Tightening Caution.

Tighten

39-Y(29-lb-ft)

2

Differential Fill Plug

Procedure

Fill the differential with the proper lubricant. Refer toAdhesives, Fluids, Lubricants, and Sealers.

Tighten

39-Y(29-lb-ft)
