Chevrolet Equinox Service Manual: Crankshaft Rear Oil Seal and Housing Replacement Engine Block Seals and Gaskets

Chevrolet Equinox Service Manual / Powertrain / Engine / Crankshaft Rear Oil Seal and Housing Replacement Engine Block Seals and Gaskets

Removal ProcedureRemove the automatic transmission flex plate. Refer toAutomatic Transmission Flex Plate Replacement.Remove the oil pan. Refer toOil Pan Replacement.

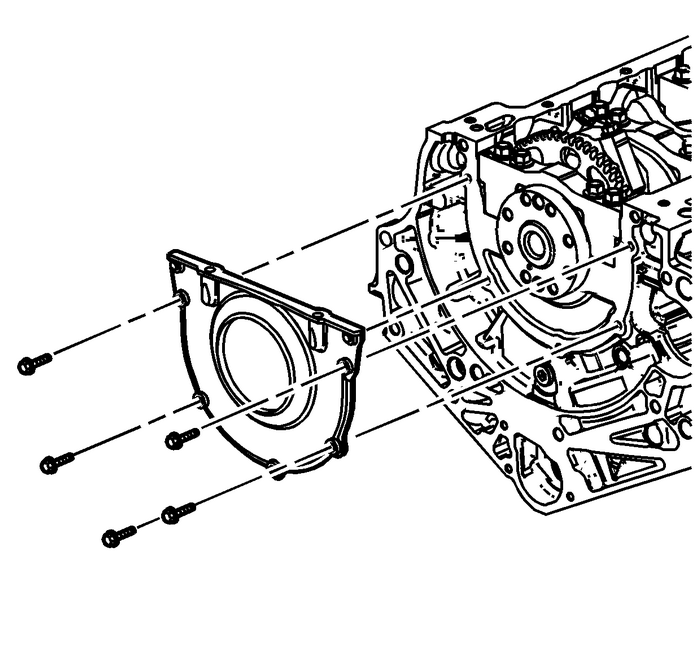

Crankshaft Rear Oil Seal and Housing Replacement Engine Block Seals and Gaskets

Remove the crankshaft rear oil seal and housing. Refer toCrankshaft Rear Oil Seal and Housing Removal.Installation Procedure

Crankshaft Rear Oil Seal and Housing Replacement Engine Block Seals and Gaskets

Install the crankshaft rear oil seal and housing. Refer toCrankshaft Rear Oil Seal and Housing Installation.Install the oil pan. Refer toOil Pan Replacement.Install the automatic transmission flex plate. Refer toAutomatic Transmission Flex Plate Replacement.
