Chevrolet Equinox Service Manual: Camshaft Replacement - Right Side Valvetrain Camshaft

Removal ProcedureRemove the camshaft position actuators. Refer toCamshaft Position Actuator Replacement - Bank 1.

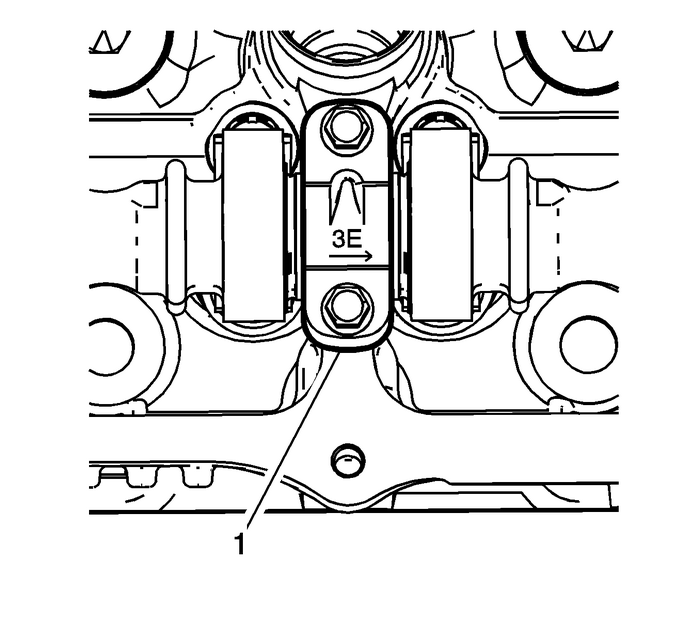

Observe the markings on the bearing caps-(1). Each bearing cap is marked in orderto identify its location. The markings have the following meanings:The raised feature must always be oriented toward the center of the cylinder head.The I indicates the intake camshaft.The E indicates the exhaust camshaft.The number indicates the journal position from the front of the engine.

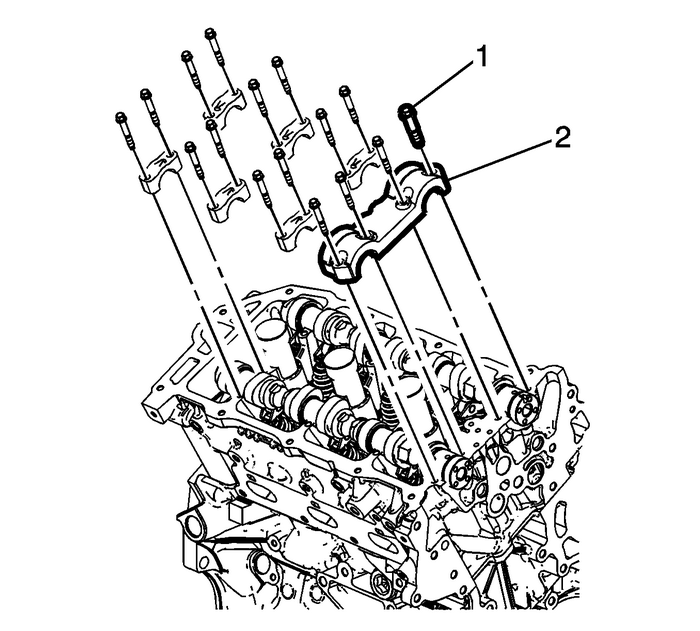

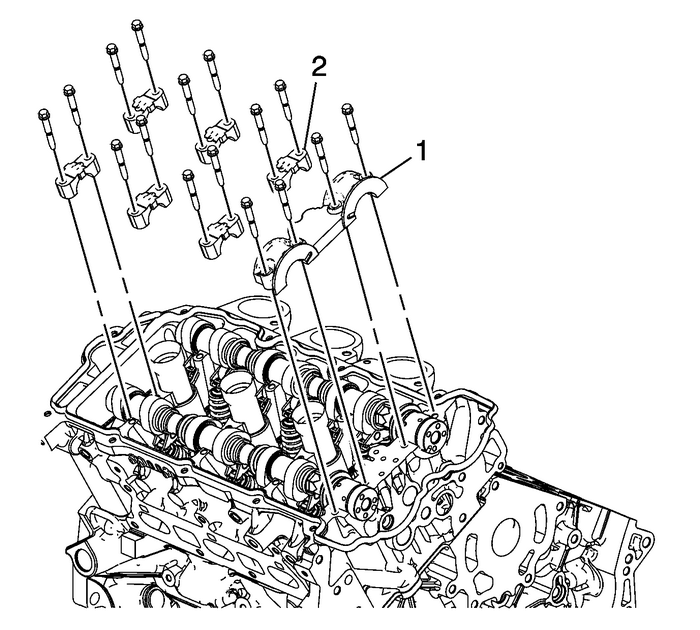

Remove the camshaft bearing cap bolts-(1).Remove the camshaft bearing caps-(2).

Important:Mark the camshafts upon removal to ensure installation is in the correct position.

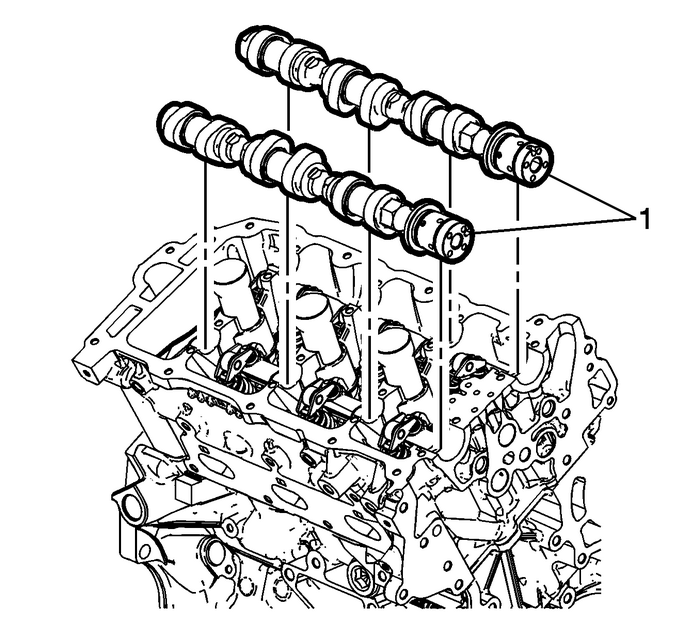

Remove the camshafts-(1).Installation Procedure

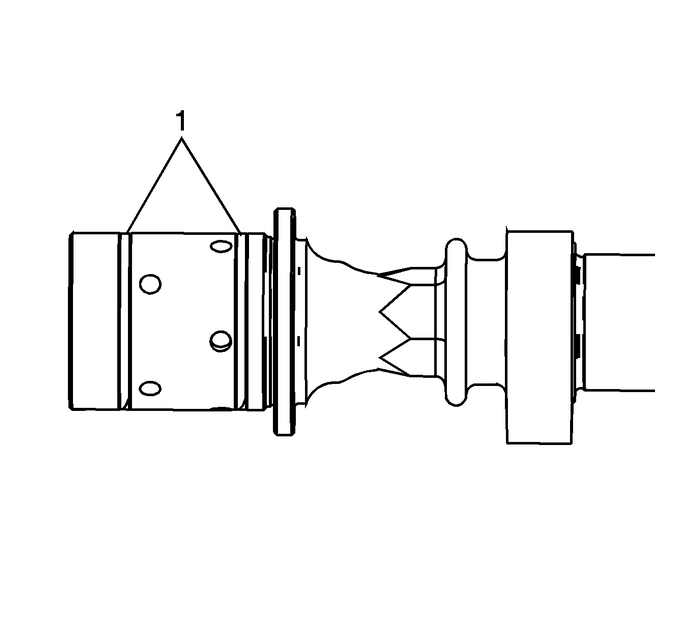

Ensure that the camshaft sealing rings-(1) are in place in the camshaft grooves. Camshaftsealing rings must be in place below the surface of the camshaft journal in orderto avoid being pinched between the cylinder head and the camshaft caps.

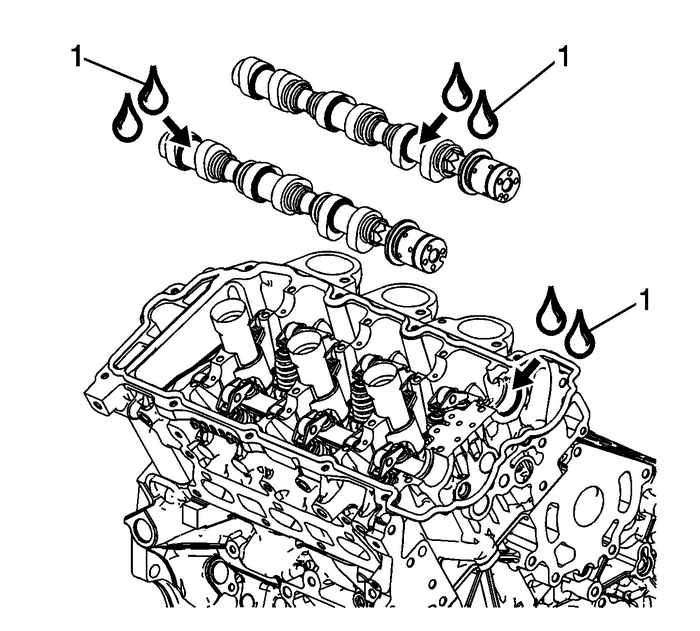

Apply a liberal amount of lubricant-(1) to the camshaft journals and the right cylinderhead camshaft carriers. Refer toAdhesives, Fluids, Lubricants, and Sealersfor recommended lubricant.

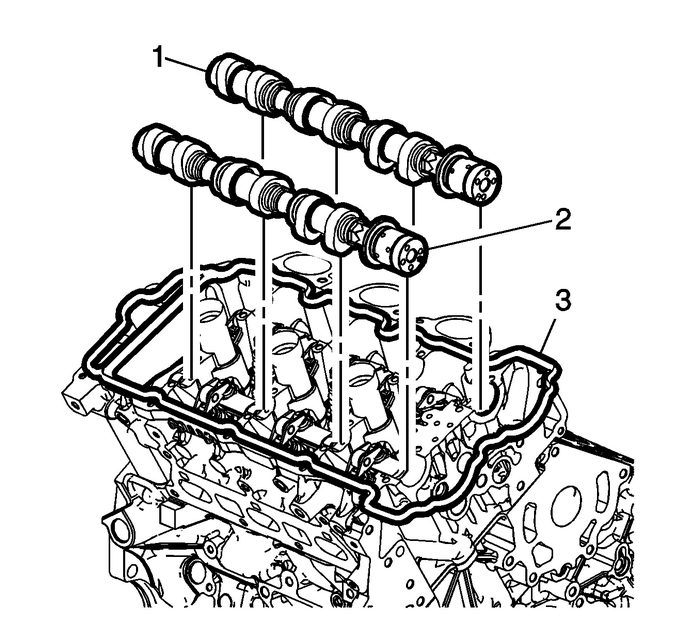

Place the right intake-(1) and right exhaust-(2) camshafts in position in the rightcylinder head-(3).

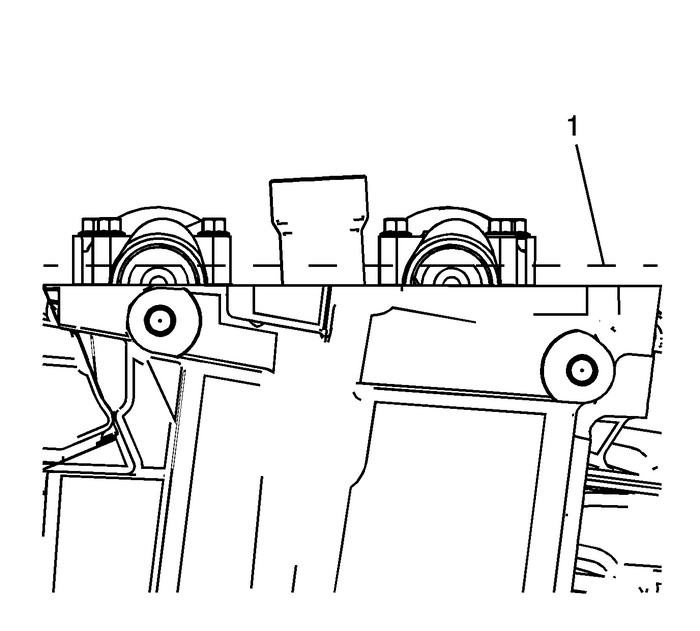

Position the camshaft lobes in a neutral position with the flats on the back of thecamshafts up and parallel-(1) with the right cylinder head camshaft cover rail.

iiihii

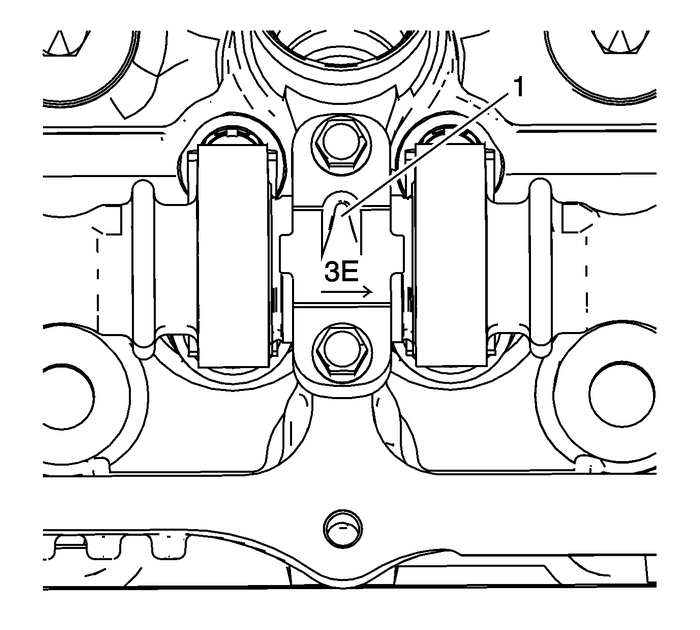

Observe the markings on the right cylinder head camshaft bearing caps. Each bearingcap is marked in order to identify its location. The markings have the following meanings:The raised feature-(1) must always be oriented toward the center of the cylinder head.The I indicates the intake camshaft.The E indicates the exhaust camshaft.The number 1, 3, 5 indicates the cylinder position from the front of the engine.Apply a liberal amount of lubricant to the camshaft bearing caps. Refer toAdhesives, Fluids, Lubricants, and Sealersfor recommended lubricant.

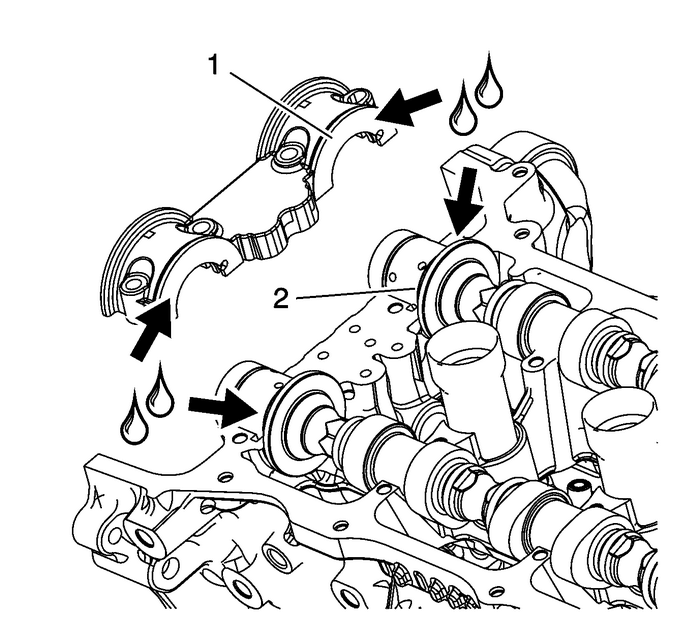

Apply a liberal amount of lubricant to the camshaft bearing cap-(1) and camshaft thrustsurface-(2). Refer toAdhesives, Fluids, Lubricants, and Sealersfor recommended lubricant.

Install the camshaft bearing thrust caps-(1) in the first journal of the right cylinderhead.Install the remaining bearing caps-(2) with their orientation mark toward the centerof the cylinder head.Hand start all the camshaft bearing cap bolts.

_____iiiiiiii

Caution:Refer toFastener Caution.

Caution:This vehicle is equipped with torque-to-yield or single use fasteners. Install a NEWtorque-to-yield or single use fastener when installing this component. Failure toreplace the torque-to-yield or single use fastener could cause damage to the vehicleor component.

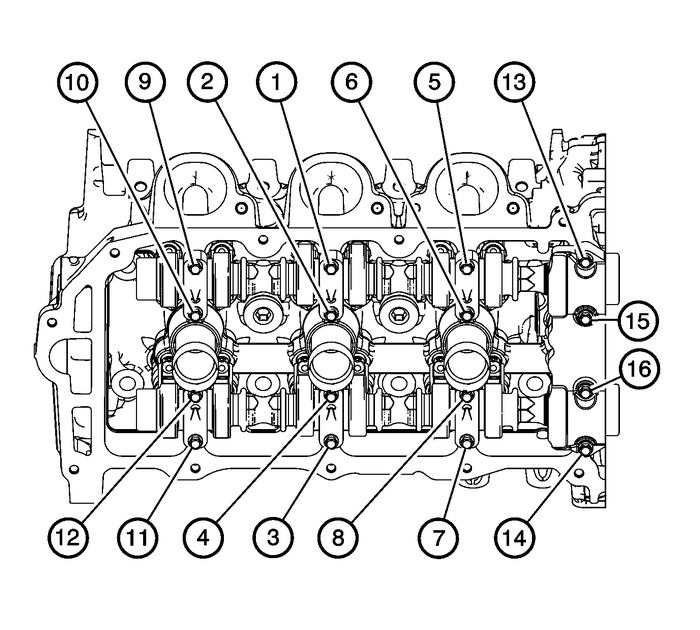

Tighten the camshaft bearing cap bolts in the sequence shown and tighten to 10-Y (89-lb-in).Loosen the center intake camshaft bearing cap bolts-(1, 2) and the center exhaustcamshaft bearing cap bolts-(3, 4).Retighten the center camshaft bearing cap bolts-(1, 2, 3, 4) and retighten the camshaftbearing cap bolts to 10-Y (89-lb-in).Install the camshaft position actuators. Refer toCamshaft Position Actuator Replacement - Bank 1.
