Chevrolet Equinox Service Manual: Manual Shift Detent Lever with Shaft Position Switch Assembly and Park Pawl Actuator Installation Automatic Transmission Unit

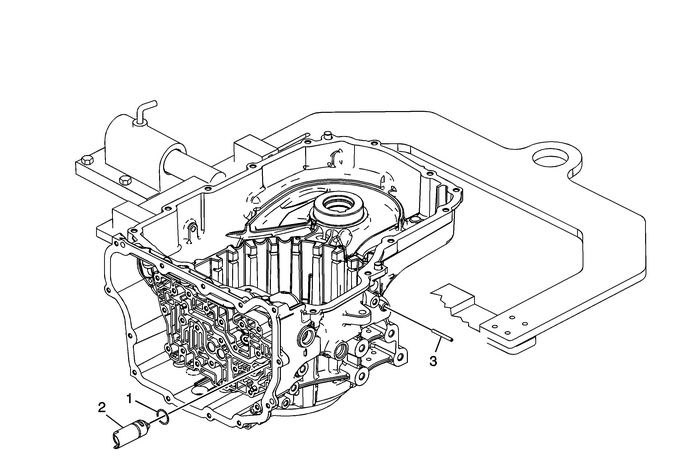

| Table 1: | Park Pawl Actuator Guide Installation |

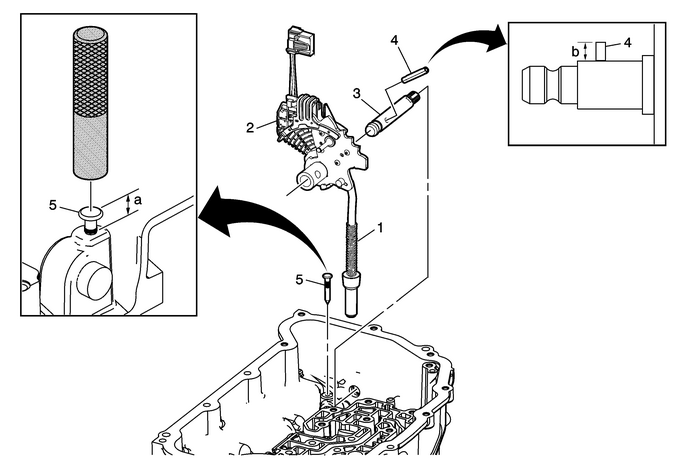

| Table 2: | Park Pawl Actuator Installation |
1 | Park Pawl Actuator Guide Assembly Seal |
2 | Park Pawl Actuator Guide Assembly |
3 | Park Pawl Actuator Guide Pin Caution:Refer toFastener Caution. Procedure Install the park pawl actuator guide pin to correct height. Tighten7.2-mm (0.28-in) |
1 | Park Pawl Actuator Assembly |
2 | Manual Shift Detent (w/Shaft Position Switch) Lever Assembly |
3 | Manual Shaft Note:Lubricate the shaft with ATF to prevent damage to the manual shift shaft seal duringinstallation. |
4 | Manual Shaft Detent Lever Hub Pin Caution:Refer toFastener Caution. Procedure Install the manual shaft detent lever hub pin to correct height. Note:Use a NEW pin to ensure proper engagement with the shaft. Specification7.9-mm (0.38-in)-(b) Special Tools DT-48550 Detent Lever Pin Remover For equivalent regional tools, refer toSpecial Tools. |
5 | Manual Shift Shaft Pin Caution:Use the manual shaft pin installer to install the pin at thecorrect height in order to properly secure the manual shaft. If youinstall the pin too deep, the case bore may crack. Procedure Inspect pin installed height is within specifications. Note:Use a NEW pin to ensure proper engagement with the case. Specification7.2–8.2-mm (0.28–0.32-in)-(a) Special Tools DT-41229 Manual Shaft Pin Installer For equivalent regional tools, refer toSpecial Tools. |
