Control Valve Channel Upper Plate Assembly

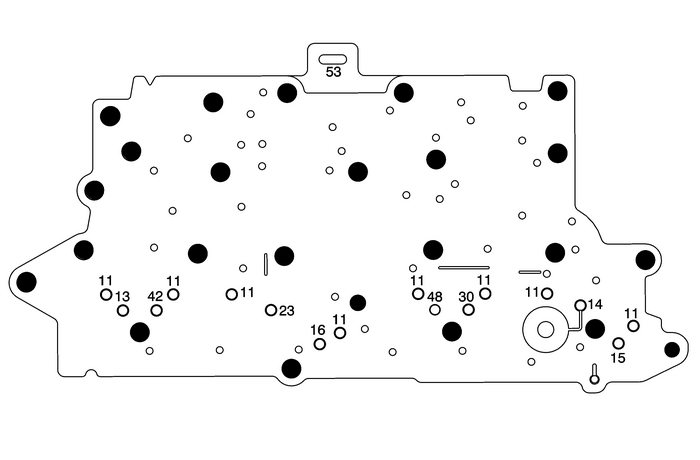

Control Valve Channel Upper Plate Assembly Automatic Transmission Unit

(11)Actuator Feed Limit
(13)PCS Line
(14)PCS R1/456 Clutch
(15)Solenoid 1
(16)Solenoid 2
(23)PCS 35 Reverse Clutch
(30)PCS 1234 Clutch
(42)PCS 26 Clutch
(48)PCS TCC
(53)Void
Control Valve Channel Plate - Upper Plate Side Automatic Transmission Unit
Control Valve Channel Plate– Upper Plate Side(11)Actuator Feed Limit(13)PCS Line(14)PCS R1/456 Clutch(15)Solenoid 1(16)Solenoid 2(23)PCS 35 Reverse Clutch(30)PCS 1234 Clutch(35)Exhaust(40)Latch Feed ...

Control Valve Lower Body Automatic Transmission Unit
Control Valve Lower Body(2)Line(11)Actuator Feed Limit(14)PCS R1/456 Clutch(19)R1/456 Clutch Feed(20)R1 Feedback(21)R1 Supply(23)PCS 35 Reverse Clutch(28)35 Reverse Clutch(29)35 Reverse Clutch Feedbac ...
